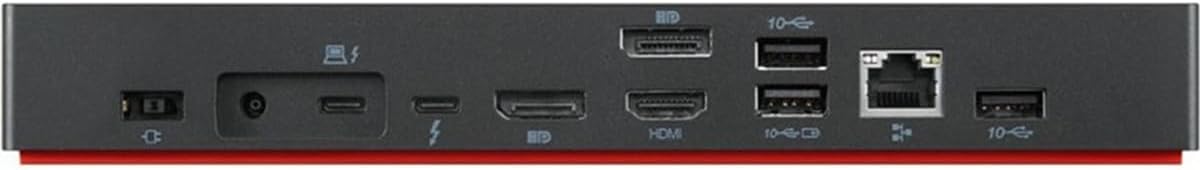

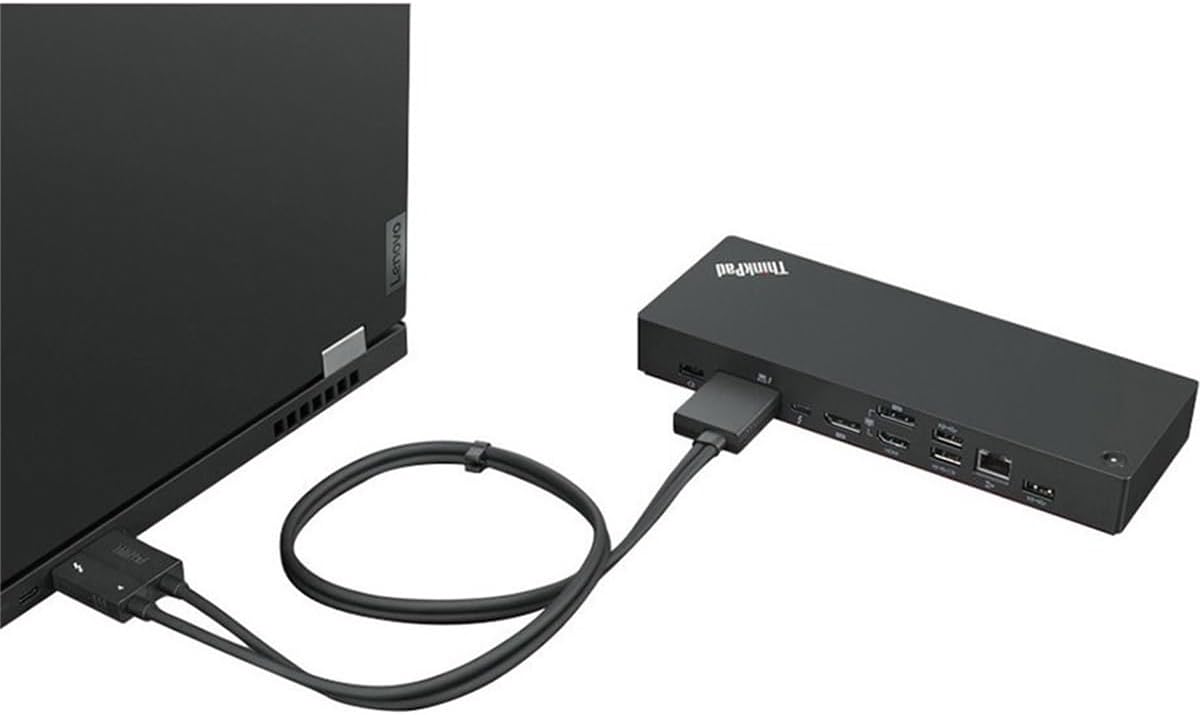

Lenovo ThinkPad Thunderbolt 4 Workstation Dock Review
Explore the Lenovo ThinkPad Thunderbolt 4 Dock that transforms your chaotic workspace into a haven of efficiency—like adding extra screens to your creative chaos.
The Lenovo ThinkPad Thunderbolt 4 Workstation Dock is the heavy-duty version of Lenovo’s Thunderbolt 4 dock lineup. Where the Universal TB4 Dock weighs 1.16 lbs with a 135W adapter, the Workstation Dock weighs 4.1 lbs with a 300W adapter. That power difference is the point: this dock is built for ThinkPad P-series workstations that draw far more power than a ThinkPad T-series ultrabook. If your Lenovo workstation came with a 230W charger and you need a dock that replaces it at the desk, the Workstation Dock provides that power alongside Thunderbolt 4 connectivity.
The Amazon listing for this product is the sparsest we have encountered on this site. The two bullets say: “Expand your horizon with versatile display” and “Efficiency and creativity to the peak.” That is the entire product description. No port breakdown. No display resolution. No power delivery detail. No OS compatibility. The Number of Ports field says 1, which is clearly incorrect. The specs below combine what Amazon confirms with what Lenovo’s product documentation provides. 3-year Lenovo warranty.

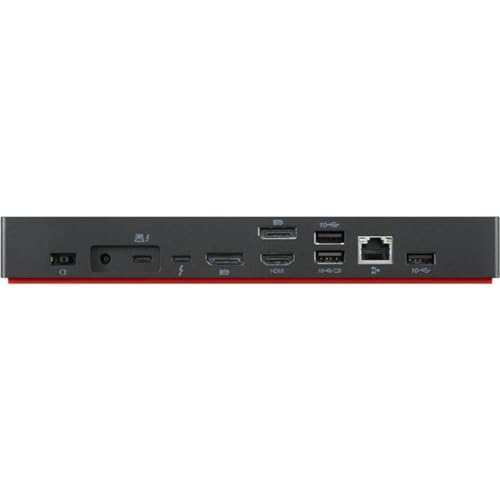

Key Specifications
| Specification | Detail |
|---|---|
| Total USB Ports | 5 (per Amazon) |
| HDMI | 1 (per Amazon) |
| DisplayPort | Listed in hardware interface (count not specified) |
| Thunderbolt | Listed in hardware interface |
| Ethernet | Listed in hardware interface |
| USB-C | Listed in hardware interface |
| Number of Ports | Amazon says 1 (clearly incorrect) |
| Power Adapter | 300W AC (per box contents). Amazon wattage field says 230W. |
| Compatible Devices | Monitor/Notebook/Workstation |
| Weight | 4.1 lbs |
| Dimensions | 10.7″ L x 7.7″ W x 3.5″ H |
| Color | Black/Red (workstation branding) |
| Manufacturer | Lenovo Group Limited |
| Warranty | 3 years (Lenovo manufacturer) |
Note: The Amazon listing provides almost no usable technical detail. The port breakdown, display resolution support, power delivery to laptop, OS compatibility, and data transfer speeds are not specified in the Amazon data. Lenovo’s own product documentation provides these details.
Workstation Dock vs Universal Dock
Lenovo makes two ThinkPad Thunderbolt 4 docks. The Universal (40B00135US, reviewed separately on this site) and the Workstation. They look similar but serve different laptops:
The Universal TB4 Dock weighs 1.16 lbs, includes a 135W adapter, delivers 100W to the laptop, and is designed for ThinkPad T-series, X-series, and L-series ultrabooks that charge at 45-100W.
The Workstation TB4 Dock weighs 4.1 lbs, includes a 300W adapter, and is designed for ThinkPad P-series workstations that charge at 170-230W. These workstations have dedicated GPUs, high-wattage CPUs, and draw far more power than ultrabooks. A 135W dock cannot keep them charged under load. The 300W adapter can.
If your ThinkPad came with a charger rated at 135W or less, the Universal dock is the right match. If your ThinkPad came with a 170W or 230W charger, the Workstation dock is built for your machine. For the Universal dock review, see the Lenovo ThinkPad Universal Thunderbolt 4 Dock review.
300W Adapter: Why Workstations Need It
A ThinkPad P15 Gen 2 with an NVIDIA RTX A5000 GPU draws up to 230W under full load. A ThinkPad P17 with similar specs draws similarly. At 170-230W, these machines drain battery even on a 135W dock. The 300W adapter feeds both the dock and the laptop with enough power for the workstation to run at full performance without battery drain during intensive tasks like CAD rendering, 3D modeling, video editing, and machine learning workloads.
The 300W adapter is physically larger than the 135W. At 4.1 lbs for the dock alone plus the adapter’s weight, this is a desk-only setup. The Workstation Dock is not portable. It sits at your desk permanently and provides a one-cable docking experience for your workstation.
What’s in the Box
| Item | Included |
|---|---|
| Lenovo ThinkPad TB4 Workstation Dock | 1 |
| 300W AC Power Adapter | 1 |
| Power Cord | 1 |
| Standard Thunderbolt Cable | 1 |
| Setup Poster | 1 |
| Warranty Poster | 1 |
Amazon Data Gaps
This Amazon listing is the least informative dock listing on this site. The two bullets contain zero technical information. The Number of Ports field says 1. The wattage field says 230W while the box contents list a 300W adapter. No display resolution, no port speeds, no OS compatibility, no power delivery to laptop.
The product is a legitimate Lenovo workstation dock with a 3-year warranty from Lenovo Group Limited. The listing simply was not created for Amazon shoppers. Like the HP USB-C Dock G5, this is an enterprise product sold primarily through Lenovo’s direct channels and IT procurement. The Amazon listing is a secondary channel that was never optimized. For docks with complete Amazon data, see our docking stations hub page.
Drawbacks
| Consideration | Detail |
|---|---|
| No Usable Amazon Specs | Two bullets with zero technical content. |
| 4.1 lbs + 300W Adapter | Desk only. Not portable. |
| Power Conflict | Amazon says 230W. Box contents say 300W adapter. |
| Port Count Error | Amazon says 1 port. Clearly incorrect. |
| Workstation-Specific | Built for ThinkPad P-series. Overkill for ultrabooks. |
Who This Dock Is For
Lenovo ThinkPad P-series workstation owners who need a desk dock that charges their 170-230W machine at full power: The 300W adapter powers the workstation at full throttle during CAD, 3D, video, and ML workloads. Thunderbolt 4 provides the bandwidth. 3-year Lenovo warranty. If your ThinkPad P-series came with a 170W+ charger, this is the dock Lenovo designed for it. For the lighter Universal dock for ultrabooks, see the Lenovo ThinkPad Universal Thunderbolt 4 Dock review.
Ultrabook owners or buyers who need detailed Amazon specs: The Universal TB4 Dock serves ultrabooks at 1.16 lbs with 135W. This listing provides almost no Amazon data. For docks with complete listings, see our docking stations hub page.
Final Verdict
The Lenovo ThinkPad Thunderbolt 4 Workstation Dock exists for one reason: ThinkPad P-series workstations need more power than any other dock on this site provides. The 300W adapter delivers that power. The Thunderbolt 4 connection provides the bandwidth. The 3-year warranty backs it up. Everything else about this dock — display capability, port layout, data speeds — is documented in Lenovo’s own product pages rather than this Amazon listing.
For P-series owners, this is the dock Lenovo built for your machine. For everyone else, the Universal TB4 Dock provides the same Thunderbolt 4 connection at one-quarter the weight and one-half the adapter size.
Frequently Asked Questions
What is the difference between this and the Universal TB4 Dock?
Power. The Universal has a 135W adapter and weighs 1.16 lbs. The Workstation has a 300W adapter and weighs 4.1 lbs. The Universal serves ultrabooks (45-100W). The Workstation serves P-series workstations (170-230W). Same Thunderbolt 4 standard, different power tiers.
Why is the Amazon listing so empty?
Enterprise product. Lenovo sells these through IT procurement and direct channels. The Amazon listing was not optimized with consumer-facing specs. The product is legitimate. The listing is just bare.
Is the adapter 230W or 300W?
The Amazon wattage field says 230W. The box contents field says “300W AC Power Adapter.” The 300W figure in the box contents is likely more accurate since it describes the physical item included. The 230W may represent the power delivery to the laptop, not the adapter rating.
Can I use this with a ThinkPad T-series?
Technically yes, but it is overkill. The 300W adapter and 4.1 lb dock are designed for high-power workstations. A ThinkPad T14 charging at 65W does not need a 300W adapter. The Universal TB4 Dock serves T-series machines at a fraction of the weight and cost.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.
Docking Station Intelligence
The standards are confusing by design. These three panels decode what manufacturers won’t explain clearly. Applicable to every docking station.
The USB-C Confusion Matrix
The USB-C connector is the single greatest source of buyer confusion in docking stations. The physical plug looks identical whether it carries USB 2.0 at 480 Mbps or Thunderbolt 5 at 120 Gbps — a 250x difference in capability hidden behind the same shape. Manufacturers exploit this by labeling everything "USB-C compatible" without specifying which protocol runs through it. Two docks can look identical on the outside and behave completely differently once you plug them in.
The hierarchy matters because it determines everything: how many monitors your dock can drive, how fast files transfer, whether your laptop charges while docked, and whether you need third-party drivers. Here is the real capability ladder, from slowest to fastest:
The practical takeaway: if your laptop has Thunderbolt 4, buy a Thunderbolt dock. If it only has generic USB-C, verify whether it supports DisplayPort Alt Mode before buying anything with multi-monitor claims. Our buying guide walks through verification steps for every major laptop brand.
Power Delivery: What the Watts Mean
Power Delivery (PD) determines whether your docking station can charge your laptop while you work, or whether you need a separate charger cluttering your desk. The math is simple but rarely explained: your laptop draws a specific wattage under load, and the dock must match or exceed it. If the dock delivers less than your laptop needs, the battery slowly drains even while plugged in — defeating the purpose of a docking station entirely.
Most ultrabooks need 45–65W. Standard business laptops need 65–100W. Gaming and workstation laptops can demand 100–140W or more. The dock’s advertised PD wattage is the maximum it can deliver to your laptop — but this drops if you charge other devices (phones, tablets) through the dock simultaneously. Always leave a 15–20W margin above your laptop’s requirement.
Check your laptop’s original charger wattage — that’s your baseline. Our FAQ covers how to find this for every major brand.
Native Display vs DisplayLink: The Hidden Factor
This is the decision most buyers don’t know they’re making. When a docking station outputs video to your monitors, it uses one of two fundamentally different methods: native (the dock passes your laptop’s GPU signal directly to the monitor) or DisplayLink (the dock compresses video over USB and a software driver renders it). The difference is invisible in marketing materials but profoundly affects your daily experience.
Native output through DisplayPort Alt Mode or Thunderbolt uses your laptop’s actual graphics hardware. There is zero added latency, full DRM support for streaming services, no CPU overhead, and no driver to install. DisplayLink, by contrast, adds 5–15ms of latency (noticeable in video calls and cursor movement), blocks DRM content on connected monitors (Netflix, Disney+ show black screens), consumes 3–8% of your CPU constantly, and requires a driver that Apple’s macOS security updates occasionally break.
DisplayLink exists for one reason: Apple Silicon base chips (M1, M2, M3) can only drive one external display natively. If you need two or more monitors on a base MacBook Air or 13” MacBook Pro, DisplayLink is your only option. For everyone else — Windows users, Mac Pro/Max chip users, Intel/AMD laptops — native is always the better choice.
Native (Alt Mode / Thunderbolt)
DisplayLink (USB compression)
The bottom line: if your laptop supports native multi-display output, always choose a native dock. DisplayLink is a workaround, not an upgrade. See our glossary for detailed definitions.
