ARZOPA Z1FC Review: Power Checks and 144Hz Limits
Updated October 25, 2026
A source-based ARZOPA Z1FC review with a four-step check for flicker when brightness rises, connection requirements and qualified buying advice.
The ARZOPA Z1FC is a 16.1-inch, 1080p portable monitor rated for up to 144Hz. Its practical appeal is a larger second screen with a built-in kickstand. Its practical limit is the whole connection: the source must supply compatible video, and the monitor needs adequate power. A high refresh-rate specification does not guarantee that a game will run at 144 frames per second.
Z1FC flickers when brightness rises? Check power first
A brightness-linked restart or flicker is a reason to check the power path. It is not proof of a defective panel or a confirmed power fault. Use the sequence below before replacing equipment.
- Record the starting setup. Note brightness, refresh rate, video cable and power source. Keep the same content on screen so the comparison is useful.
- Lower brightness only. Note whether the symptom changes. A more stable image is a clue, not a diagnosis.
- Check the supply, then retest. Follow the manual for your exact unit. The linked Z1FC manual specifies a minimum supply of 5V/2.4A; ARZOPA’s general setup guide recommends 5V/3A or above for brightness-related flicker or restarts. Use a suitable supply and cable, then return to the original brightness without changing the video connection.
- Read the result. If the original brightness is now stable, the power path is implicated; this does not isolate the adapter, cable or host port. If flicker persists, check a known-good video cable or a lower supported refresh rate one change at a time, then contact ARZOPA with the setup and results.
Using Mini HDMI? Keep video and power separate
Computer HDMIHDMI to Mini HDMI cable
→Monitor Mini HDMIVideo input
Suitable USB supplyPower cable
→Monitor USB-CSeparate power input
This is a connection map, not a port-position drawing. Mini HDMI does not replace the monitor’s USB power connection. A one-cable USB-C setup instead needs a host port and cable that support video, plus sufficient power.
Sources: Z1FC user guide · ARZOPA setup guidance · Current model support
Display: 16.1-Inch 144Hz IPS with 106% sRGB
A higher refresh ceiling can make motion look smoother when the source delivers a suitable signal and frame rate. Connection limits, game settings and host performance still matter. We have not measured this unit’s response time, input lag or motion clarity.
ARZOPA lists 106% sRGB, 300 nits and a 1000:1 contrast ratio. Treat these as manufacturer specifications, not independent measurements. Gamut size alone does not establish color accuracy or calibration. Buyers doing color-critical work need measured accuracy and a suitable calibration workflow.
HDR support does not establish high dynamic-range performance. We have no measured evidence that ghosting is eliminated or that the display cannot limit gameplay. An eye-care marketing label is also insufficient to predict comfort for an individual user.
Adaptive Sync: A Contradiction in the Listing
The current ARZOPA product page is inconsistent: its specification table says FreeSync is not supported, while its FAQ says it is. The Amazon-fed description on this page also says no adaptive sync or FreeSync. Do not treat adaptive sync as a confirmed feature. Ask ARZOPA to confirm the exact unit and seller listing before buying for this requirement.
Power requirements and laptop battery use
The manufacturer lists 10W power consumption, but that is not a measured consumption curve across brightness and refresh settings. The Z1FC has no internal battery. When the laptop supplies its power, the display draws energy from the laptop; there is no basis here for a zero-battery-impact claim. For brightness-related instability, use the four-step power check above.
Build and carrying weight
The current manufacturer listing gives a net weight of 1.72 lb, approximately 0.78 kg, and dimensions of 366 × 228 × 9.3 mm. The previous 1.42 kg figure and 13 × 8 inch dimensions did not match that listing. Check the exact variant; cables, charger and protective case add to packed weight.

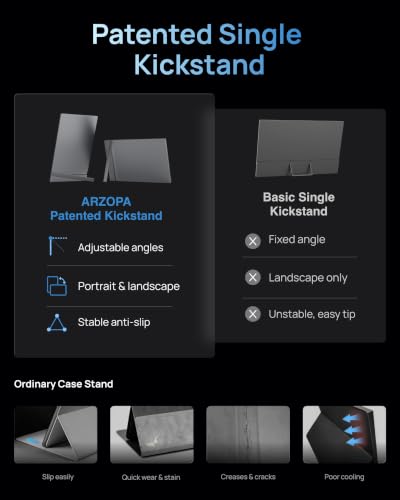

The built-in kickstand offers tilt adjustment. Portrait use also requires suitable physical support and a connected computer that can rotate the display output. Do not infer mounting compatibility from the kickstand alone.
Connectivity and source compatibility
The Z1FC has two USB-C ports and a Mini HDMI input. A USB-C connector shape alone does not establish video support: check the host specification and use a video-capable cable. The manual shows HDMI-to-Mini-HDMI video with a separate USB power connection.
Laptops, handhelds and consoles have different output limits. Confirm the exact device, adapter and supported resolution/refresh combination. A 144Hz monitor cannot force a console or game to output 144Hz, and Steam Deck models do not all share the same internal screen specification.
| Feature | Evidence and qualification |
|---|
| Model | ARZOPA Z1FC; verify exact seller variant |
|---|
| Panel | 16.1-inch IPS, 1920 × 1080 |
|---|
| Refresh ceiling | Up to 144Hz; source and connection dependent |
|---|
| Manufacturer display claims | 106% sRGB; 300 nits; 1000:1 contrast |
|---|
| Response time | No independent measurement in this review |
|---|
| HDR | Input support is not a measured HDR-performance rating |
|---|
| Adaptive sync | Conflicting manufacturer claims; confirmation required |
|---|
| Ports | Two USB-C; one Mini HDMI |
|---|
| Power | No internal battery; consult unit manual for supply requirements |
|---|
| Listed power consumption | 10W; not a measured all-settings guarantee |
|---|
| Net weight | 1.72 lb, approximately 0.78 kg, manufacturer listing |
|---|
| Dimensions | 366 × 228 × 9.3 mm, manufacturer listing |
|---|
| Speakers | Two 1W speakers listed by manufacturer |
|---|
| Stand | Built-in kickstand |
|---|
| Warranty | Confirm seller, region and exact purchase terms |
|---|
Advantages and limits
Reasons to consider it
- A larger portable screen with a high refresh ceiling for compatible sources.
- An integrated stand and two common video connection options.
- Built-in speakers are listed; external audio is not automatically required.
Reasons to pause
- Adaptive-sync claims conflict, so FreeSync-dependent buyers need written confirmation.
- Power, video capability and cables must all suit the setup.
- We have no measured color accuracy, response-time or brightness results for this unit.
- Confirm mounting and audio-output needs against the exact unit before purchase.
Who should consider the Z1FC?
Consider it for a portable second screen when your source supports the required output and you can provide suitable power. Its refresh ceiling may be useful for compatible gaming or general desktop use, but the actual experience depends on the source and content.
Pause if confirmed adaptive sync is essential. Also compare alternatives if you need independently verified color accuracy, strong outdoor visibility, a specific mount or a documented response-time result. Do not buy it on the expectation of no laptop battery drain.
Verdict and source record
The Z1FC is worth considering for its screen size, refresh ceiling and stand, provided the source and power setup fit. It is not a verified universal gaming upgrade. If the screen flickers as brightness rises, start with the structured power check rather than assuming that the panel needs replacement.
Specifications were checked against ARZOPA’s Z1FC product listing, the linked user guide and support pages on 25 October 2026. Manufacturer claims can change or conflict across variants. The live Amazon card below remains the place to check seller availability and current price; a sales rank is not evidence of satisfaction or product quality.
