Dell D3100 Dock Review

StatusSource-based review
Re-verifyBefore purchase
How we review docking stations: Research-based review. Built from manufacturer documentation, standards, dated listings and verified owner reports, then checked for port protocols, power delivery limits, display compatibility and OS constraints. Constraints disclosed before any affiliate link.

The Dell D3100 reaches 4K at 30Hz through DisplayPort. Check HDMI limits, DisplayLink requirements and laptop charging before buying.

The Dell D3100 connects up to three external monitors through DisplayLink over USB 3.0, but its 4K capability has a specific limit: 3840 × 2160 at 30Hz through DisplayPort. Its two HDMI outputs do not provide 4K in Dell’s published configuration table. It requires compatible DisplayLink software and does not charge the connected laptop. Check these limits before choosing it for a 4K workstation.

Connections and host requirements

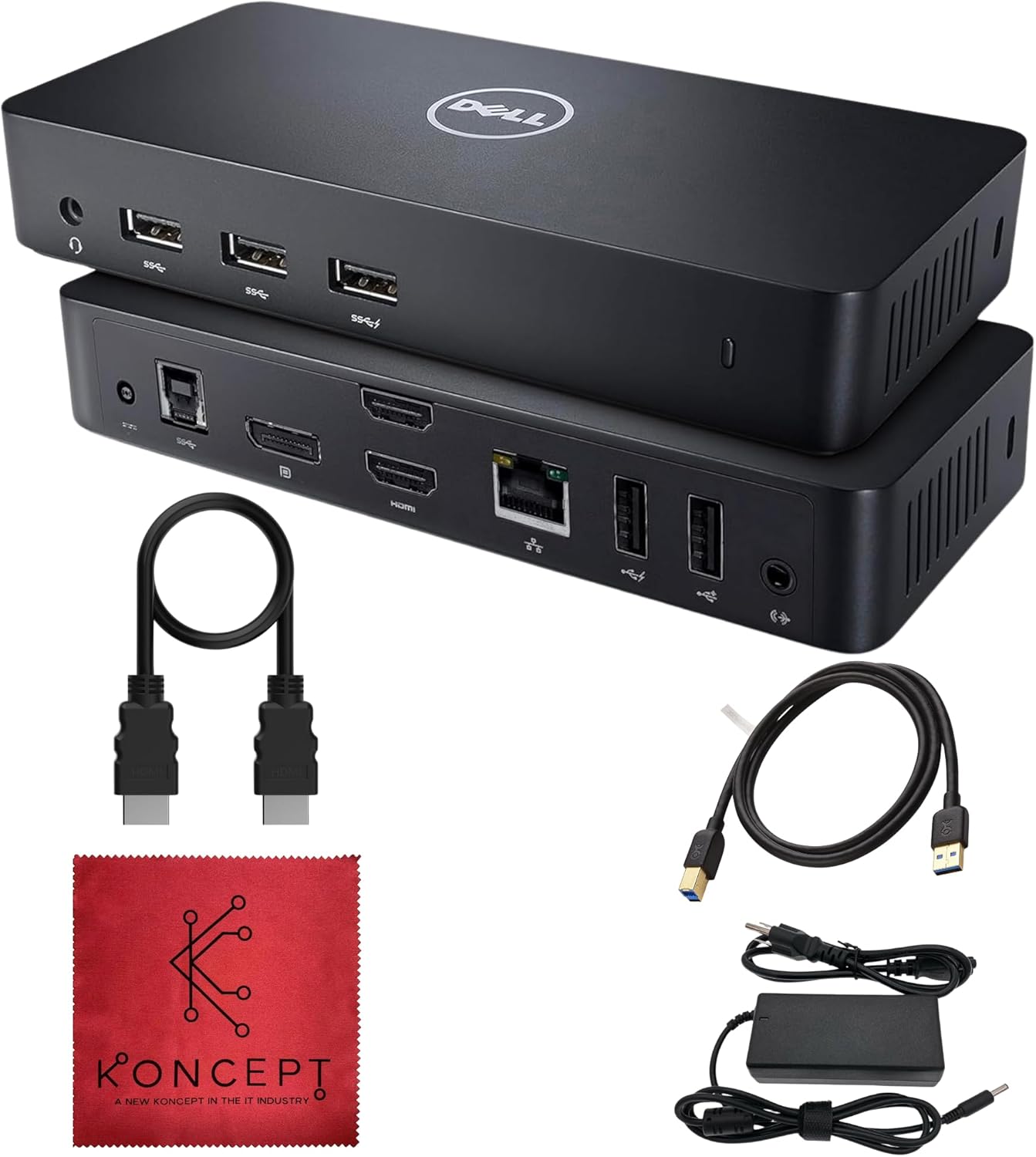

The D3100 has three USB 3.0 Type-A ports on the front, two USB 2.0 Type-A ports on the rear, one DisplayPort output, two stacked HDMI outputs, Gigabit Ethernet, a front headset socket and a rear audio line-out. The rear USB 3.0 Standard-B socket is the upstream connection to the laptop; it is not a USB-C charging port.

Video requires compatible DisplayLink software and a suitable host system. Check Dell’s D3100 driver page and the current DisplayLink Windows requirements for your exact OS. An old operating-system list in a manual is not a promise of current support. Managed computers may need IT permission to install the driver.

Dell D3100 USB 3.0 Docking Station Enhanced Connectivity and Compatibility

Check the laptop before buying

A USB 3.0 Type-A connection can carry the D3100’s DisplayLink data without Thunderbolt or USB-C DisplayPort Alt Mode. Connector fit alone does not establish compatibility: check the computer, OS, driver, monitor modes and workload together. Keep the laptop’s own charger connected. The dock’s power adapter supplies the dock and is not a laptop charging specification.

D3100 resolution and refresh rate by connection

Read the row for the outputs you will use at the same time. The table below reproduces the numerical limits from Dell’s D3100 User Guide, page 3. Display EDID support also matters. These are documented modes, not measurements from a hands-on test.

Active outputsDisplayPortHDMI 1HDMI 2
DisplayPort only3840 × 2160 / 30HzNot connectedNot connected
HDMI 1 onlyNot connected2560 × 1440 / 50HzNot connected
HDMI 2 onlyNot connectedNot connected2560 × 1440 / 50Hz
DisplayPort and HDMI 13840 × 2160 / 30Hz2560 × 1440 / 50HzNot connected
DisplayPort and HDMI 23840 × 2160 / 30HzNot connected2560 × 1440 / 50Hz
Both HDMI outputsNot connected2048 × 1152 / 60Hz2048 × 1152 / 60Hz
All three outputs3840 × 2160 / 30Hz2048 × 1152 / 60Hz2048 × 1152 / 60Hz

Source: Dell D3100 User Guide, Rev. A02, June 2017, pages 3–4. If you require 3840 × 2160 at 60Hz through the dock, choose a model that explicitly supports that mode with your intended monitor combination. A different cable does not change the D3100’s documented 4K refresh-rate ceiling.

Dell D3100 USB 3.0 Docking Station Vibrant Display Capabilities

What to check in a renewed bundle

The linked offer is a renewed listing. Confirm its condition, seller, warranty, power adapter, upstream USB cable and any display adapters on the current listing before purchase. Dell’s original package description does not establish what a particular renewed seller includes. Do not assume an HDMI cable, cleaning cloth or original adapter is supplied.

Benefits and limitations

  • Useful for additional productivity displays: one USB host connection can serve monitors, USB peripherals and Ethernet when the host and driver are compatible.
  • Three outputs are not three 4K outputs: the DisplayPort and HDMI limits differ, especially when both HDMI ports are active.
  • Software dependency: DisplayLink installation and OS compatibility must be checked.
  • Separate laptop power: keep the laptop’s own charger available.

Suitability for work and media

The D3100 can be considered for documents, spreadsheets and other productivity tasks when its documented display modes meet your needs. At 4K, 30Hz gives fewer display refreshes per second than 60Hz; this matters when you expect fluid cursor movement or scrolling. Actual responsiveness also depends on the host, driver and workload.

Dell’s manual states that HDCP support is not available. Do not buy it on the assumption that protected streaming services will work through this display path. For games, motion-sensitive work or a 4K 60Hz requirement, evaluate a suitable native display connection or a different dock against the exact computer and monitor specifications.

Buying decision

Choose the D3100 only if its port-by-port display limits, DisplayLink requirement and separate laptop charger fit your setup. Before comparing current renewed offers, match every intended monitor to the table above and verify the required refresh rate. The word “4K” alone does not establish a 4K 60Hz workstation.

Learn more about the Dell D3100 Dock USB 3.0 Ultra HD/4K Triple Display - 1 Year Warranty - Dell Docking Station Dual Monitor with 65W, HDMI USB 3.0 Cable - Laptop Computer Docking Station (Renewed) here.

Editorial accountability
Operator on record · Docking & connectivity desk
Boniface Musembi
Boniface Musembi

I evaluate docking stations the way they actually get used — against real bandwidth budgets, power-delivery ceilings, and the OS handshakes that quietly cap what a port can do — not spec-sheet promises. Every constraint that can break a multi-display setup is disclosed before any affiliate link.

Review focus
Docking stations, port protocols & multi-display connectivity
Standards referenced
USB-IF, VESA, Intel Thunderbolt & HDMI Forum specifications
Verification
Check current specifications
Before You Buy Any Docking Station
Verify these before purchasing. Applies to every dock, not just this one.
Identified your laptop’s exact port type (USB-C vs TB 3/4/5)?
Confirmed your laptop’s power delivery requirement?
Counted how many external monitors you need?
Verified your OS supports the dock’s display method?
Checked the exact laptop model and OS limitations?
Want deeper analysis?
This review covers the essentials. Our resources go further:
Share
Copied!

Docking Station Intelligence

The standards are confusing by design. These three panels decode what manufacturers won’t explain clearly. Applicable to every docking station.

The USB-C Confusion Matrix

The USB-C connector is the single greatest source of buyer confusion in docking stations. The physical plug looks identical whether it carries USB 2.0 at 480 Mbps or Thunderbolt 5 at 120 Gbps — a 250x difference in capability hidden behind the same shape. Manufacturers exploit this by labeling everything "USB-C compatible" without specifying which protocol runs through it. Two docks can look identical on the outside and behave completely differently once you plug them in.

The hierarchy matters because it determines everything: how many monitors your dock can drive, how fast files transfer, whether your laptop charges while docked, and whether you need third-party drivers. Here is the real capability ladder, from slowest to fastest:

The practical takeaway: if your laptop has Thunderbolt 4, buy a Thunderbolt dock. If it only has generic USB-C, verify whether it supports DisplayPort Alt Mode before buying anything with multi-monitor claims. Our buying guide walks through verification steps for every major laptop brand.

Power Delivery: What the Watts Mean

Power Delivery (PD) determines whether your docking station can charge your laptop while you work, or whether you need a separate charger cluttering your desk. The math is simple but rarely explained: your laptop draws a specific wattage under load, and the dock must match or exceed it. If the dock delivers less than your laptop needs, the battery slowly drains even while plugged in — defeating the purpose of a docking station entirely.

Check the laptop manufacturer’s recommended power supply and the dock’s rated host power. Shared charging budgets vary by dock: powering peripherals does not reduce host charging on every model. USB-C charging also depends on the laptop, cable and negotiated power profile. A lower-power supply may charge slowly or allow battery drain under load; a fixed 15–20W margin is not a universal requirement.

Check your laptop’s original charger wattage — that’s your baseline. Our FAQ covers how to find this for every major brand.

Native Display vs DisplayLink: The Hidden Factor

This is the decision most buyers don’t know they’re making. When a docking station outputs video to your monitors, it uses one of two fundamentally different methods: native (the dock passes your laptop’s GPU signal directly to the monitor) or DisplayLink (the dock compresses video over USB and a software driver renders it). The difference is invisible in marketing materials but profoundly affects your daily experience.

Native output through DisplayPort Alt Mode or Thunderbolt uses the host graphics system. DisplayLink transports encoded display data over USB using compatible software. Its responsiveness and CPU/GPU load vary with the computer, software, resolution and workload; fixed latency, CPU and battery percentages are not universal specifications. Protected-video playback also depends on the display path, operating system and service. Check DisplayLink system requirements for your configuration.

DisplayLink can add displays through compatible USB connections, including USB-A, and can serve systems with limited native display outputs. Native limits depend on the exact computer and operating mode. For example, M3 MacBook Air and MacBook Pro support two external displays with the lid closed under Apple’s stated conditions. Choose the display method against your computer, software permissions and workload.

Native (Alt Mode / Thunderbolt)

LatencySystem dependent
DRM ContentCheck HDCP chain
CPU UsageWorkload dependent
Max ResolutionHost / dock specific
DriverOS / GPU support
Battery ImpactSystem dependent

DisplayLink (USB compression)

LatencyWorkload dependent
DRM ContentPlayback restrictions
CPU UsageWorkload dependent
Max ResolutionChipset / dock specific
DriverRequired
Battery ImpactSystem dependent

Choose a native or DisplayLink dock by checking the exact host, dock, operating system and monitor combination. Native output is often preferable for latency-sensitive workloads; DisplayLink can be useful for additional productivity displays and compatible USB-A hosts. Neither connector shape nor a generic bandwidth number proves compatibility.
