Anker USB C Hub for MacBook Review

StatusSource-based review
Re-verifyBefore purchase
How we review docking stations: Research-based review. Built from manufacturer documentation, standards, dated listings and verified owner reports, then checked for port protocols, power delivery limits, display compatibility and OS constraints. Constraints disclosed before any affiliate link.

Anker USB-C Hub for MacBook Review: Examine 4K @ 60Hz HDMI video output, 100W PD charging, 5Gbps USB data throughput, and Thunderbolt 3 limits.

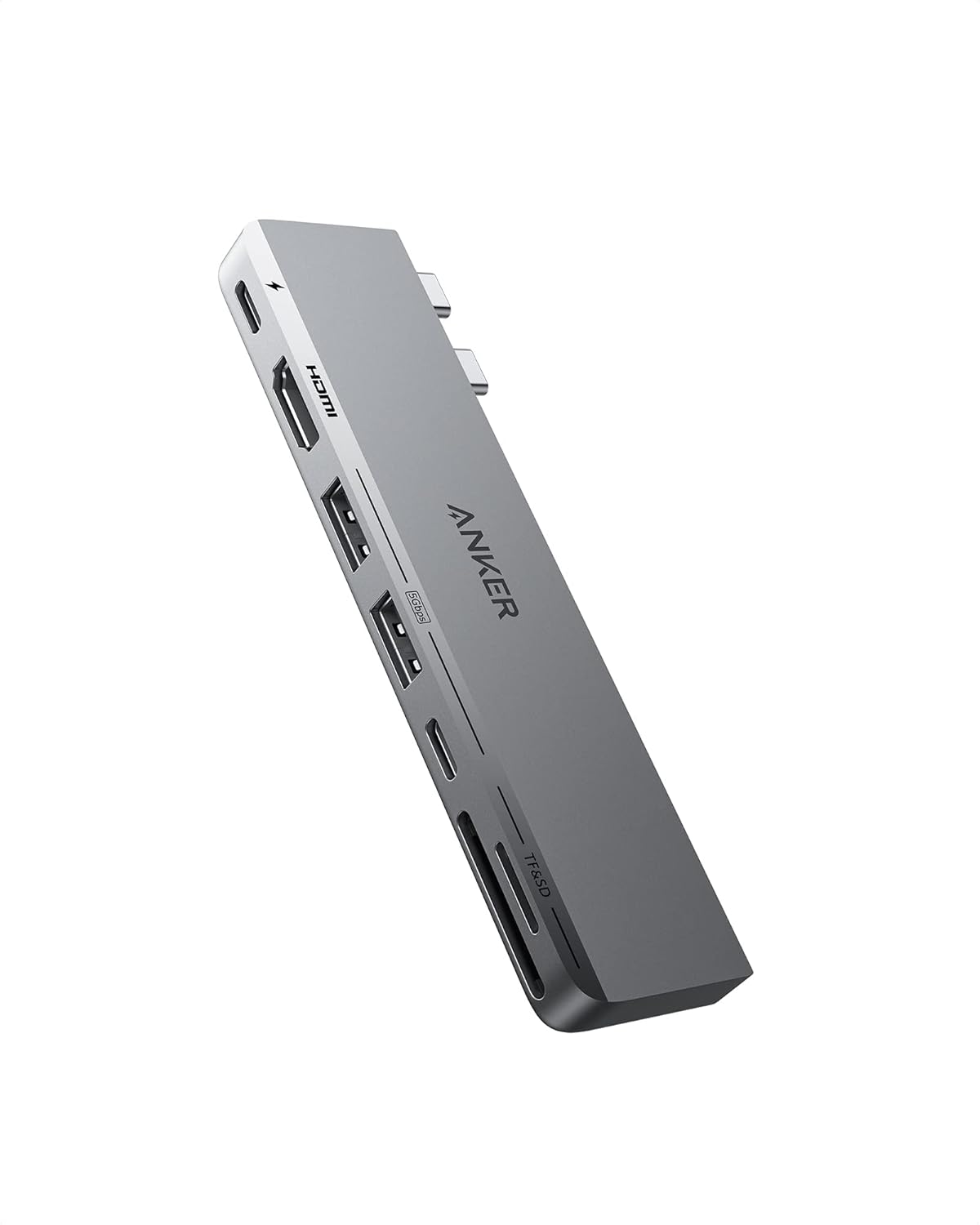

The Anker 547 USB-C Hub (7-in-2) is designed specifically for MacBooks with dual USB-C ports. It plugs directly into both ports and expands them into seven connections: a multi-function USB-C port (100W charging, 40Gbps data, 5K display), a USB-C data port, two USB-A ports, a 4K@60Hz HDMI port, and SD plus microSD card slots. It’s built to sit flush against the MacBook’s chassis without blocking the MagSafe charging port—a design detail that matters if you charge wirelessly while docked. Here’s a detailed look at what each port delivers and where the hub’s limitations lie.

Port Breakdown: What Each Connection Does

The hub turns two MacBook USB-C ports into seven usable connections. Each serves a distinct purpose:

Discover more about the Anker USB C Hub for MacBook, 7-in-2 with 4K HDMI, Compatible with Thunderbolt 4, 1 Type C and 2 USB A Data Ports for MacBook Pro 13 Inch, MacBook Air M1 / M2, and More.

The multi-function USB-C port is the most versatile. It passes through up to 100W of charging power to your MacBook, transfers data at 40Gbps (full Thunderbolt 4 speed), and can output video at up to 5K@60Hz resolution. This single port alone replaces the need for a separate charger passthrough and a video adapter.

The USB-C data port provides a dedicated high-speed connection for external SSDs, backup drives, or any USB-C peripheral that needs fast data transfer without competing with the multi-function port’s other duties.

The two USB-A ports connect legacy peripherals—flash drives, external hard drives, keyboards, mice, or older accessories that still use USB-A connectors. For MacBook users who frequently encounter USB-A devices, these ports eliminate the need for a separate USB-A adapter.

The HDMI port outputs video at 4K@60Hz. For a single external monitor at your desk, this delivers sharp, smooth visuals for productivity, video playback, and presentations. The 60Hz refresh rate ensures fluid cursor movement and window animations at 4K resolution.

The SD and microSD card slots provide direct media card access without a separate card reader. Photographers importing from cameras and content creators working with action cameras or drones benefit from having these slots built into the hub rather than occupying a USB port with an external reader.

PortCapability
Multi-function USB-C100W PD charging, 40Gbps data, 5K@60Hz video
USB-C DataHigh-speed data transfer
USB-A (x2)Legacy device connectivity
HDMI4K@60Hz external display
SD CardDirect media card import
microSD CardDirect media card import

Display Output: 4K HDMI and 5K USB-C

The HDMI port delivers 4K@60Hz to a single external monitor—the resolution and refresh rate that most productivity users need. Text is razor-sharp at 4K, windows snap crisply, and video content plays back at full detail.

The multi-function USB-C port separately supports 5K@60Hz video output. Using both the HDMI and USB-C video outputs simultaneously enables a dual external monitor setup—one at 4K through HDMI, another at up to 5K through USB-C. This gives MacBook users the ability to drive two high-resolution displays from a single compact hub.

There is one important limitation from the manufacturer: M1 and M2 MacBooks do not support dual external displays. This is a macOS restriction, not a hub limitation. On M1 and M2 base-model MacBooks, only one external display will function regardless of how many video ports are available. MacBook Pro models with M1 Pro, M1 Max, or later Pro/Max chips support multiple displays natively.

Design: Built for MacBooks Specifically

Unlike universal USB-C hubs that connect via a single cable, the Anker 547 plugs directly into both USB-C ports on the side of the MacBook. This creates a clean, integrated look—the hub sits flush against the laptop’s chassis as if it were a built-in extension rather than an add-on accessory.

A specific design consideration worth noting: the hub is shaped to avoid blocking the MagSafe charging port. This means you can have the hub connected and still charge your MacBook via MagSafe simultaneously, or use the hub’s USB-C passthrough for charging—whichever suits your setup. The compact form factor keeps desk clutter minimal and makes the hub portable enough to carry in a laptop sleeve alongside the MacBook.

The hub is compatible with Thunderbolt 4 and works with the latest MacBook Air and MacBook Pro models. Because it’s designed around the MacBook’s dual USB-C port layout, it’s a MacBook-specific product—it won’t work with Windows laptops or tablets that have different port spacing or single USB-C ports.

Charging Passthrough

The multi-function USB-C port supports up to 100W power delivery passthrough. When your MacBook charger is connected through this port, the hub passes charging power through to the laptop while maintaining all other connections. For the MacBook Air (30W-35W charger) and MacBook Pro 13″ (67W charger), the full charging speed passes through without reduction. Even the 16″ MacBook Pro’s 96W-140W charger will charge through the hub, though at the 100W passthrough cap.

What’s in the Box

The package includes the Anker 547 USB-C Hub (7-in-2), a welcome guide, an 18-month warranty, and access to Anker’s customer service team. No additional cables are needed since the hub plugs directly into the MacBook’s ports.

Pros and Cons

What Stands Out

  • Seven ports from two USB-C connections—covers charging, display, data, and media cards
  • Multi-function USB-C port handles 100W charging, 40Gbps data, and 5K video simultaneously
  • 4K@60Hz HDMI output for crisp external monitor connection
  • Dual display support (HDMI + USB-C) on compatible MacBook Pro models
  • Designed to avoid blocking the MagSafe charging port
  • Plugs directly into MacBook—no dangling cable, clean integrated look
  • SD and microSD slots eliminate the need for a separate card reader
  • Compact and portable enough to carry with the laptop
  • 18-month warranty with Anker customer service

What Could Be Better

  • MacBook-only design—does not work with Windows laptops or other USB-C devices
  • M1 and M2 base MacBooks limited to one external display (macOS limitation, not hub limitation)
  • Occupies both USB-C ports on the MacBook—no ports left for direct USB-C connections
  • No Ethernet port—wired networking requires a separate adapter
  • USB-A ports are data-only, not specified for high-speed 10Gbps transfer
  • No audio jack—headphone connection must use MacBook’s built-in jack or Bluetooth

Who Is This Hub For?

MacBook Air and MacBook Pro 13″ users who need more ports than the two USB-C connections Apple provides. The hub restores the connectivity that Apple removed—HDMI, USB-A, and card readers—in a single compact device that matches the MacBook’s design aesthetic.

Photographers and content creators who regularly import from SD and microSD cards. Having both card slots built into the hub means one less accessory to carry and one less thing occupying a USB port.

Presenters and desk workers who connect to an external 4K monitor daily. The HDMI output at 4K@60Hz provides a reliable, sharp display connection that activates the moment you plug in the hub—no configuration needed.

Users who want a clean desk setup. Because the hub plugs directly into the MacBook with no cable between them, it creates a tidy, integrated appearance rather than the cable spaghetti that comes with dongle-style hubs.

This hub is not the right choice if you use a Windows laptop, if you need Ethernet, if you require more than two USB-A ports, or if you have an M1/M2 base MacBook and need dual external monitors (you’ll need a DisplayLink-based dock for that).

Final Verdict

The Anker 547 USB-C Hub solves the MacBook port shortage problem in the most elegant way available. It restores seven connections from two USB-C ports, fits flush against the laptop, avoids blocking MagSafe, and delivers meaningful capabilities through each port—100W charging passthrough, 4K@60Hz HDMI, 40Gbps data transfer, and built-in card readers.

The MacBook-only design is both its strength and its limitation. It’s purpose-built for one product line, which means the fit and integration are excellent, but Windows users need to look elsewhere. For MacBook owners who want maximum port expansion with minimum bulk, the Anker 547 is a well-executed solution backed by Anker’s reputation and 18-month warranty.

Learn more about the Anker USB C Hub for MacBook, 7-in-2 with 4K HDMI, Compatible with Thunderbolt 4, 1 Type C and 2 USB A Data Ports for MacBook Pro 13 Inch, MacBook Air M1 / M2, and More here.

Disclosure: As an Amazon Associate, I earn from qualifying purchases.

Editorial accountability
Operator on record · Docking & connectivity desk
Boniface Musembi
Boniface Musembi

I evaluate docking stations the way they actually get used — against real bandwidth budgets, power-delivery ceilings, and the OS handshakes that quietly cap what a port can do — not spec-sheet promises. Every constraint that can break a multi-display setup is disclosed before any affiliate link.

Review focus
Docking stations, port protocols & multi-display connectivity
Standards referenced
USB-IF, VESA, Intel Thunderbolt & HDMI Forum specifications
Verification
Check current specifications
Before You Buy Any Docking Station
Verify these before purchasing. Applies to every dock, not just this one.
Identified your laptop’s exact port type (USB-C vs TB 3/4/5)?
Confirmed your laptop’s power delivery requirement?
Counted how many external monitors you need?
Verified your OS supports the dock’s display method?
Checked the exact laptop model and OS limitations?
Want deeper analysis?
This review covers the essentials. Our resources go further:
Share
Copied!

Docking Station Intelligence

The standards are confusing by design. These three panels decode what manufacturers won’t explain clearly. Applicable to every docking station.

The USB-C Confusion Matrix

The USB-C connector is the single greatest source of buyer confusion in docking stations. The physical plug looks identical whether it carries USB 2.0 at 480 Mbps or Thunderbolt 5 at 120 Gbps — a 250x difference in capability hidden behind the same shape. Manufacturers exploit this by labeling everything "USB-C compatible" without specifying which protocol runs through it. Two docks can look identical on the outside and behave completely differently once you plug them in.

The hierarchy matters because it determines everything: how many monitors your dock can drive, how fast files transfer, whether your laptop charges while docked, and whether you need third-party drivers. Here is the real capability ladder, from slowest to fastest:

The practical takeaway: if your laptop has Thunderbolt 4, buy a Thunderbolt dock. If it only has generic USB-C, verify whether it supports DisplayPort Alt Mode before buying anything with multi-monitor claims. Our buying guide walks through verification steps for every major laptop brand.

Power Delivery: What the Watts Mean

Power Delivery (PD) determines whether your docking station can charge your laptop while you work, or whether you need a separate charger cluttering your desk. The math is simple but rarely explained: your laptop draws a specific wattage under load, and the dock must match or exceed it. If the dock delivers less than your laptop needs, the battery slowly drains even while plugged in — defeating the purpose of a docking station entirely.

Check the laptop manufacturer’s recommended power supply and the dock’s rated host power. Shared charging budgets vary by dock: powering peripherals does not reduce host charging on every model. USB-C charging also depends on the laptop, cable and negotiated power profile. A lower-power supply may charge slowly or allow battery drain under load; a fixed 15–20W margin is not a universal requirement.

Check your laptop’s original charger wattage — that’s your baseline. Our FAQ covers how to find this for every major brand.

Native Display vs DisplayLink: The Hidden Factor

This is the decision most buyers don’t know they’re making. When a docking station outputs video to your monitors, it uses one of two fundamentally different methods: native (the dock passes your laptop’s GPU signal directly to the monitor) or DisplayLink (the dock compresses video over USB and a software driver renders it). The difference is invisible in marketing materials but profoundly affects your daily experience.

Native output through DisplayPort Alt Mode or Thunderbolt uses the host graphics system. DisplayLink transports encoded display data over USB using compatible software. Its responsiveness and CPU/GPU load vary with the computer, software, resolution and workload; fixed latency, CPU and battery percentages are not universal specifications. Protected-video playback also depends on the display path, operating system and service. Check DisplayLink system requirements for your configuration.

DisplayLink can add displays through compatible USB connections, including USB-A, and can serve systems with limited native display outputs. Native limits depend on the exact computer and operating mode. For example, M3 MacBook Air and MacBook Pro support two external displays with the lid closed under Apple’s stated conditions. Choose the display method against your computer, software permissions and workload.

Native (Alt Mode / Thunderbolt)

LatencySystem dependent
DRM ContentCheck HDCP chain
CPU UsageWorkload dependent
Max ResolutionHost / dock specific
DriverOS / GPU support
Battery ImpactSystem dependent

DisplayLink (USB compression)

LatencyWorkload dependent
DRM ContentPlayback restrictions
CPU UsageWorkload dependent
Max ResolutionChipset / dock specific
DriverRequired
Battery ImpactSystem dependent

Choose a native or DisplayLink dock by checking the exact host, dock, operating system and monitor combination. Native output is often preferable for latency-sensitive workloads; DisplayLink can be useful for additional productivity displays and compatible USB-A hosts. Neither connector shape nor a generic bandwidth number proves compatibility.
