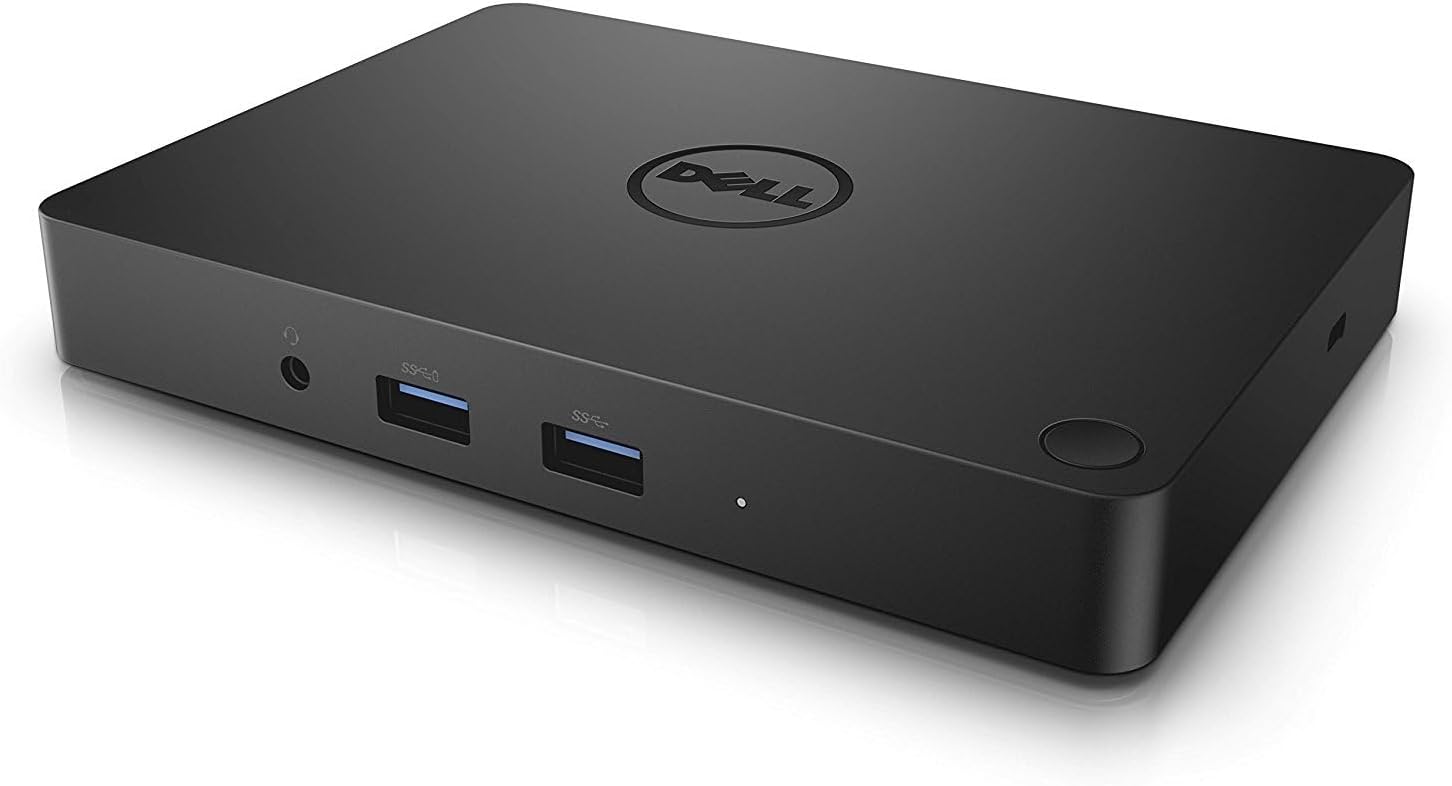

Dell WD15 Monitor Dock Review
Discover the Dell WD15 Monitor Dock, a sleek, reliable hub for all your devices. With 4K support and dual displays, it transforms any workspace effortlessly.
HDMI, VGA, and Mini DisplayPort from one USB-C cable, with a 180W adapter and 7.4mm barrel charging connector. The Dell WD15 is an older-generation Dell dock designed for specific Latitude, Precision, and XPS models from the 2016-2019 era. It predates the WD19 series. If your Dell laptop appears on the compatibility list below, the WD15 was built for it. If your laptop is newer than 2019 or is not a Dell, the WD19S, WD19TB, or WD22TB4 are the current-generation replacements. Dell Marketing USA, LP is the manufacturer. Brown Box Packaging (enterprise/bulk). 421 grams. The Amazon warranty field contains the ASIN instead of a warranty description, which is a listing error.
Key Specifications
| Specification | Detail |
|---|---|
| Total Ports | 6 (per Amazon) + USB ports |
| HDMI | 1 |
| VGA | 1 |
| Mini DisplayPort | 1 |
| USB 3.0 | 3 (SuperSpeed) |
| USB 2.0 | 2 |
| Gigabit Ethernet RJ-45 | 1 |
| Headphone/Mic 3.5mm | 1 |
| Audio Out 3.5mm | 1 |
| Max Resolution | 3840 x 2160 @ 30Hz (single), 2560 x 1600 @ 60Hz |
| Dual Display | Supported |
| Connection | USB-C (DisplayPort over USB Type-C) |
| Power Adapter | 180W AC with 7.4mm barrel |
| Weight | 421 grams / 14.8 oz |
| Dimensions | 6.1″ L x 0.83″ W x 4.3″ H |
| Manufacturer | Dell Marketing USA, LP |
| Packaging | Brown Box (enterprise/bulk) |
| Warranty | Not specified (Amazon field contains ASIN instead of warranty) |
Compatible Dell Models Only
The WD15 was designed for a specific list of Dell laptops. If your model is not here, compatibility is not guaranteed:
Latitude: 3379, 3390 2-in-1, 3490, 3590, 5280, 5285, 5289, 5290, 5290 2-in-1, 5480, 5490, 5491, 5495, 5580, 5590, 5591, 7280, 7285, 7290, 7380, 7389, 7390, 7390 2-in-1, 7480, 7490.
Precision: 3520, 3530, 5520, 5530, 5530 2-in-1, 7520, 7530, 7720, 7730.
XPS: 9360, 9365, 9370, 9560, 9570, 9575.
These are 2016-2019 era Dell laptops. If you own one of these models and need a desk dock, the WD15 was built for your machine. If you own a newer Dell (Latitude 5440, XPS 9530, etc.), the WD15 is not designed for it. The WD19S and WD22TB4 serve current-generation Dell laptops. For those reviews, see the Dell WD19S review and the Dell WD22TB4 review.

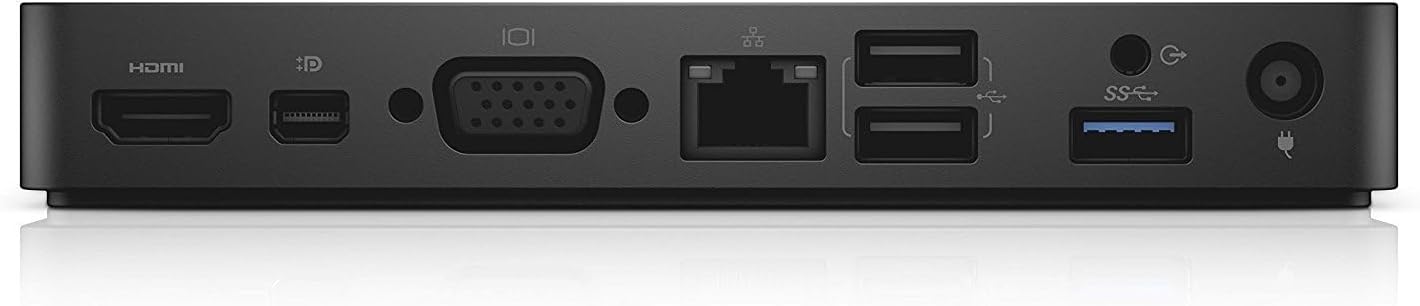

Three Video Outputs: HDMI, VGA, Mini DisplayPort
HDMI for modern monitors. VGA for conference room projectors and older displays. Mini DisplayPort for Dell and Apple displays that use that connector. Three video output types from one dock means you connect to whatever display equipment is available without carrying adapters. Dual display is supported.
The maximum resolution is 3840 x 2160 at 30Hz for a single 4K display, or 2560 x 1600 at 60Hz. At 4K, the 30Hz refresh rate is noticeably less smooth than 60Hz for cursor movement and scrolling. For static work (documents, spreadsheets, email), 30Hz at 4K is usable. For smooth scrolling and media work, 2560 x 1600 at 60Hz provides a better experience.
180W Adapter with 7.4mm Barrel
The dock connects to the laptop via USB-C for data and display. The 180W power adapter has a 7.4mm barrel connector that charges the laptop separately. This is Dell’s proprietary charging approach from this era: USB-C carries data and video, the barrel connector carries power. Newer Dell docks (WD19S, WD22TB4) deliver power through the same USB-C cable that carries data and video. The WD15’s dual-cable approach means one more cable on the desk but ensures the laptop receives full charging power independent of the dock’s data load.
Separate Audio Jacks
A headphone/mic combo jack and a separate audio out jack. Two 3.5mm jacks instead of one. The separate audio out connects to desktop speakers while the combo jack connects to a headset. For users who use both speakers and a headset at the same desk, two audio jacks eliminate the need to swap cables.
Drawbacks
| Consideration | Detail |
|---|---|
| Older Generation | 2016-2019 era Dell dock. Predates WD19 series. |
| 4K@30Hz Only | Not 60Hz at 4K. Scrolling and cursor movement less smooth. |
| Dell Models Only | Designed for specific Latitude, Precision, XPS models. |
| 7.4mm Barrel Charging | Separate power cable. Not single-cable USB-C PD. |
| USB 3.0, Not Gen 2 | 5 Gbps. Pre-dates 10 Gbps USB. |
| Warranty Unknown | Amazon warranty field contains the product ASIN instead of warranty info. |
| Brown Box Packaging | Enterprise bulk packaging. No retail box. |
Who This Dock Is For
Owners of Dell Latitude, Precision, or XPS laptops from 2016-2019 who need a desk dock with HDMI, VGA, Mini DisplayPort, USB, Ethernet, and Dell’s 180W barrel charging: If your laptop model appears on the compatibility list above, the WD15 was designed for it. Three video outputs cover modern monitors (HDMI), legacy projectors (VGA), and DisplayPort displays (Mini DP). Gigabit Ethernet. Two separate audio jacks. Five USB ports. 421 grams. For current-generation Dell docks, see the Dell WD19TB review.
Owners of newer Dell laptops, non-Dell laptops, or users who need 4K@60Hz: The WD15 is designed for specific 2016-2019 Dell models. Newer laptops should use the WD19 series or WD22TB4. Non-Dell laptops may not work reliably. 4K runs at 30Hz only. For 4K@60Hz docks, see our docking stations hub page.
Final Verdict
The Dell WD15 is an older-generation Dell dock for 2016-2019 Latitude, Precision, and XPS laptops. Three video outputs (HDMI, VGA, Mini DP), five USB ports, Gigabit Ethernet, two audio jacks, and a 180W barrel adapter. For the specific Dell models it was designed for, it provides a complete desk setup. The 4K@30Hz limitation, barrel charging, and generation age are the honest trade-offs. If your Dell laptop is on the list, the WD15 serves it. If your Dell is newer, the WD19 series replaces it.
Frequently Asked Questions
Will this work with my Dell Latitude 5440?
The 5440 is not on the WD15 compatibility list. The WD15 was designed for 2016-2019 models. For the Latitude 5440, the WD19S or WD22TB4 are the appropriate docks.
Why does it have a barrel connector and USB-C?
The WD15 uses USB-C for data and display. The 7.4mm barrel connector delivers power separately. This was Dell’s approach before USB-C Power Delivery became standard. Newer Dell docks deliver everything through one USB-C cable.
Can I get 4K at 60Hz?
No. The WD15 supports 4K@30Hz maximum. For 4K@60Hz, the WD19S, WD19TB, or WD22TB4 provide that.
What does “Brown Box Packaging” mean?
Enterprise bulk packaging without retail branding. The dock functions identically to retail-packaged units. The box is plain brown cardboard designed for IT department bulk orders.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.
Docking Station Intelligence
The standards are confusing by design. These three panels decode what manufacturers won’t explain clearly. Applicable to every docking station.
The USB-C Confusion Matrix
The USB-C connector is the single greatest source of buyer confusion in docking stations. The physical plug looks identical whether it carries USB 2.0 at 480 Mbps or Thunderbolt 5 at 120 Gbps — a 250x difference in capability hidden behind the same shape. Manufacturers exploit this by labeling everything "USB-C compatible" without specifying which protocol runs through it. Two docks can look identical on the outside and behave completely differently once you plug them in.
The hierarchy matters because it determines everything: how many monitors your dock can drive, how fast files transfer, whether your laptop charges while docked, and whether you need third-party drivers. Here is the real capability ladder, from slowest to fastest:
The practical takeaway: if your laptop has Thunderbolt 4, buy a Thunderbolt dock. If it only has generic USB-C, verify whether it supports DisplayPort Alt Mode before buying anything with multi-monitor claims. Our buying guide walks through verification steps for every major laptop brand.
Power Delivery: What the Watts Mean
Power Delivery (PD) determines whether your docking station can charge your laptop while you work, or whether you need a separate charger cluttering your desk. The math is simple but rarely explained: your laptop draws a specific wattage under load, and the dock must match or exceed it. If the dock delivers less than your laptop needs, the battery slowly drains even while plugged in — defeating the purpose of a docking station entirely.
Most ultrabooks need 45–65W. Standard business laptops need 65–100W. Gaming and workstation laptops can demand 100–140W or more. The dock’s advertised PD wattage is the maximum it can deliver to your laptop — but this drops if you charge other devices (phones, tablets) through the dock simultaneously. Always leave a 15–20W margin above your laptop’s requirement.
Check your laptop’s original charger wattage — that’s your baseline. Our FAQ covers how to find this for every major brand.
Native Display vs DisplayLink: The Hidden Factor
This is the decision most buyers don’t know they’re making. When a docking station outputs video to your monitors, it uses one of two fundamentally different methods: native (the dock passes your laptop’s GPU signal directly to the monitor) or DisplayLink (the dock compresses video over USB and a software driver renders it). The difference is invisible in marketing materials but profoundly affects your daily experience.
Native output through DisplayPort Alt Mode or Thunderbolt uses your laptop’s actual graphics hardware. There is zero added latency, full DRM support for streaming services, no CPU overhead, and no driver to install. DisplayLink, by contrast, adds 5–15ms of latency (noticeable in video calls and cursor movement), blocks DRM content on connected monitors (Netflix, Disney+ show black screens), consumes 3–8% of your CPU constantly, and requires a driver that Apple’s macOS security updates occasionally break.
DisplayLink exists for one reason: Apple Silicon base chips (M1, M2, M3) can only drive one external display natively. If you need two or more monitors on a base MacBook Air or 13” MacBook Pro, DisplayLink is your only option. For everyone else — Windows users, Mac Pro/Max chip users, Intel/AMD laptops — native is always the better choice.
Native (Alt Mode / Thunderbolt)
DisplayLink (USB compression)
The bottom line: if your laptop supports native multi-display output, always choose a native dock. DisplayLink is a workaround, not an upgrade. See our glossary for detailed definitions.
