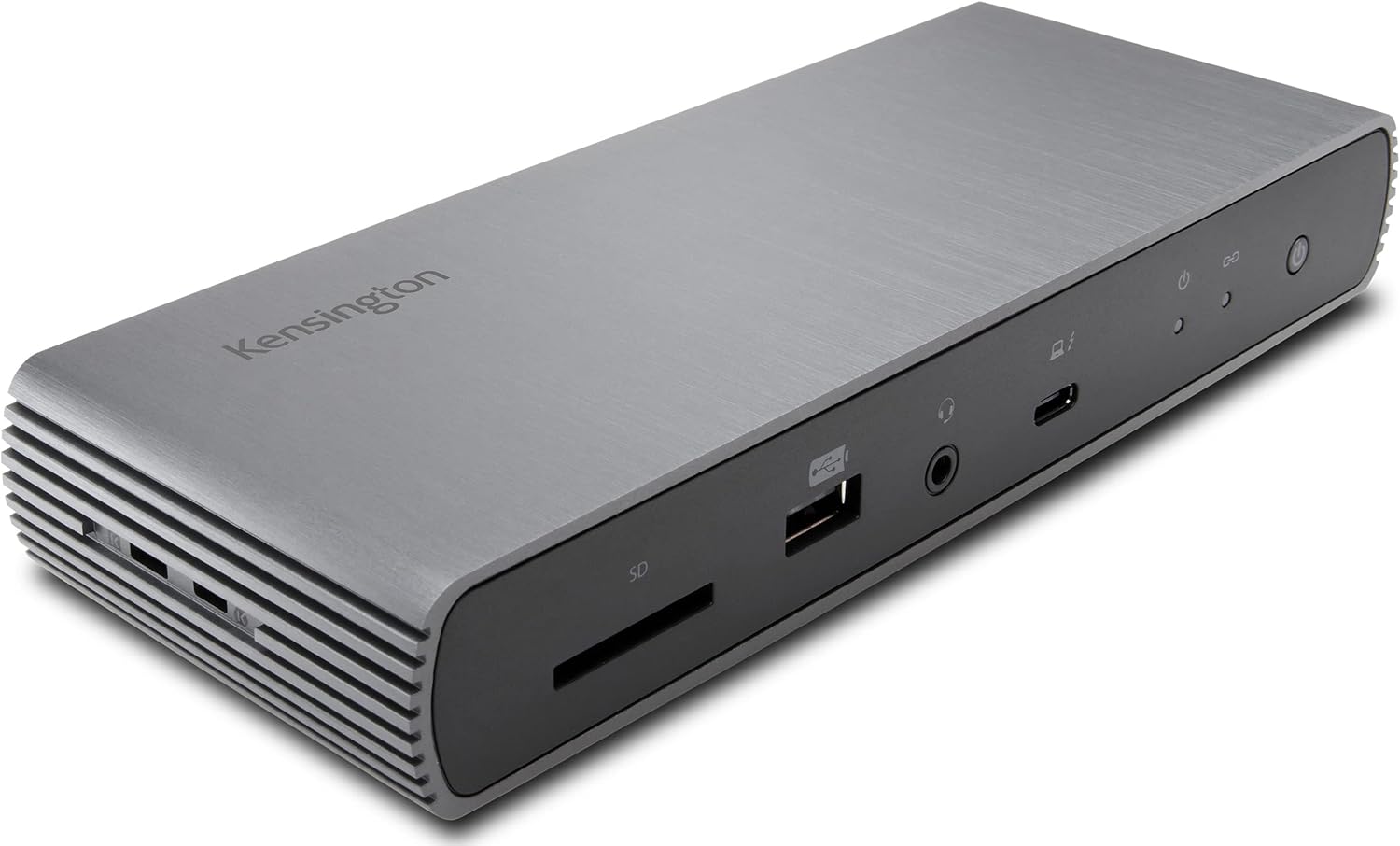

Kensington SD5700T Docking Station Review
Discover the magic of the Kensington SD5700T Docking Station—a tech marvel that transforms chaos into order with its seamless setup and stunning dual 4K display capability.
Three Thunderbolt 4 downstream ports each delivering 15W without reducing the 90W going to the laptop. That is static charging, and Kensington highlights it as a differentiator from other Thunderbolt 4 docks that divert power away from the laptop when peripherals draw current. The SD5700T keeps the laptop at 90W even when all three downstream ports and the four USB-A ports are occupied. UHS-II SD 4.0 card reader. Three USB-A at 10 Gbps. Gigabit Ethernet. VESA mounting. On/off switch. Lock slot. DockWorks software for IT management. 3-year warranty with lifetime Kensington technical support. 1 lb.
One exclusion to know before purchasing: Thunderbolt 3 Windows laptops are not compatible. Kensington states this directly and points to their K34009US model for TB3 Windows users. TB4 Windows, TB3 MacBooks, and TB4 MacBooks (macOS 11 or later) are all supported. Base M1/M2/M3 Macs get single display only. M1/M2/M3/M4 Pro/Max and M4 base get dual displays.

Kensington SD5700T Thunderbolt 4 Docking Station, Dual 4K, 90W PD - Window and Mac OS (K35175NA)

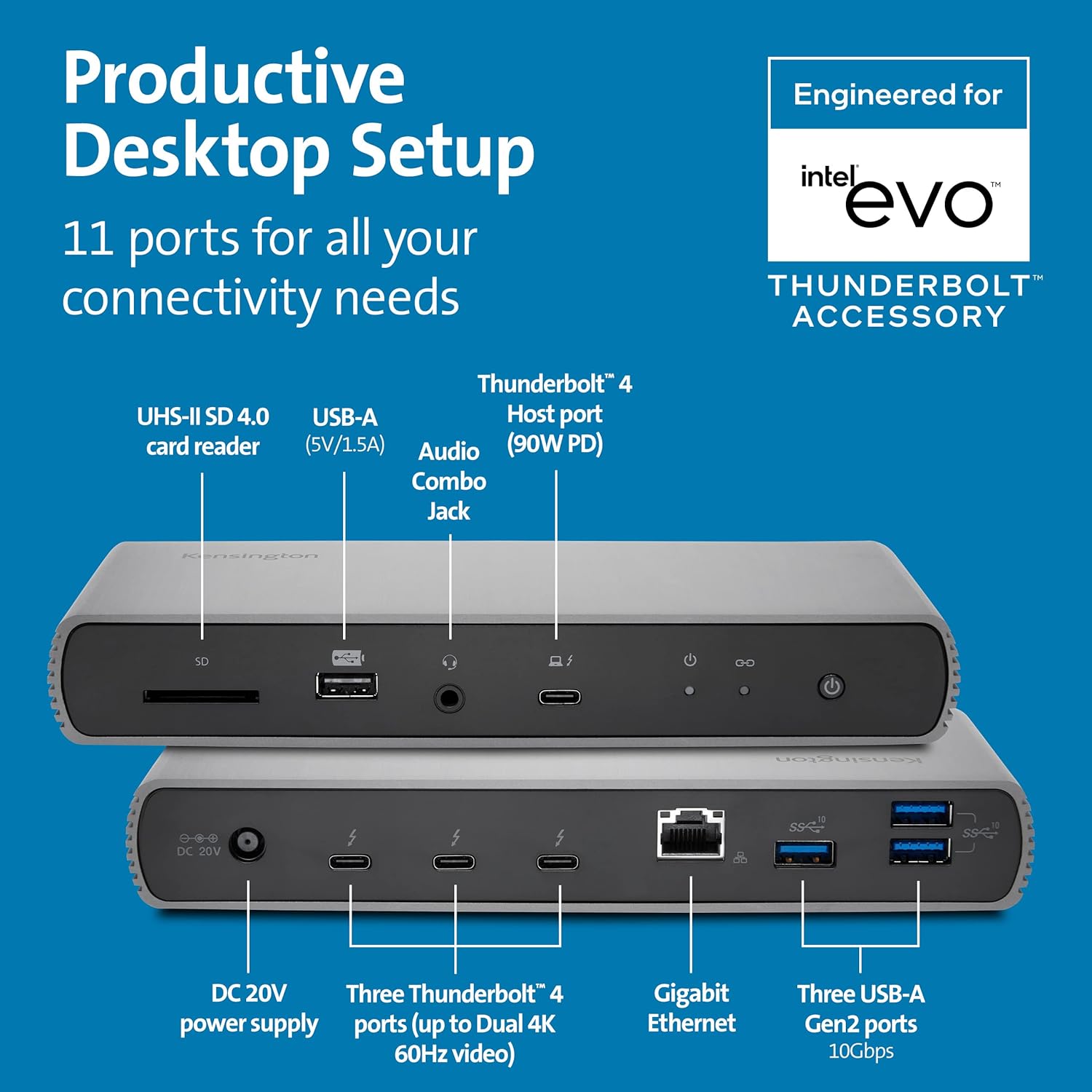

Key Specifications
| Specification | Detail |
|---|---|
| Total Ports | 11 |
| Thunderbolt 4 Downstream | 3 (data, video, audio, 15W each, 40 Gbps, daisy chain up to 5 devices) |
| USB-A Gen 2 (10 Gbps) | 3 |
| USB-A Charging | 1 (5V/1.5A) |
| SD Card Reader | UHS-II SD 4.0 |
| Gigabit Ethernet | 1 |
| Audio Combo Jack | 1 |
| Display: TB4 Windows | Single 8K@60Hz, dual 4K@60Hz, single 4K@120Hz, or dual 1080p@120Hz |
| Display: Mac Pro/Max/M4 Base | Dual 4K@60Hz |
| Display: Mac M1/M2/M3 Base | Single display only |
| Power Supply | 180W |
| Power to Laptop | 90W (static, maintained even when all ports occupied) |
| TB4 Cable | 0.8m Intel Certified included |
| On/Off Switch | Yes |
| VESA Mounting | Holes built in (bracket K34050WW sold separately) |
| Lock Slot | Yes (K65035AM or K60600WW sold separately) |
| IT Management | DockWorks: WiFi Auto-Switch, MAC Address Pass-Through, Device Monitoring |
| Security | Intel VT-d DMA protection |
| Not Compatible | Thunderbolt 3 Windows laptops (see K34009US) |
| Weight | 16 oz / 1 lb |
| Dimensions | 9″ L x 6″ W x 4″ H |
| Model | K35175NA |
| Warranty | 3 years + lifetime Kensington technical support |
Static Charging: 90W Always
Most Thunderbolt 4 docks share power between the laptop and downstream ports. When peripherals draw current from the downstream TB4 ports, the dock reduces power to the laptop. The Kensington SD5700T uses static charging: 15W flows to each of the three downstream TB4 ports from a dedicated pool, and the laptop receives its full 90W regardless of how many peripherals are connected. The 180W power supply has enough headroom to serve both independently.
For a user with three Thunderbolt peripherals (external SSD, display, another device) all connected and drawing power, the laptop still charges at 90W. On a dock without static charging, the laptop might receive 75W or 60W depending on peripheral load. That difference matters during sustained workloads where the laptop’s battery drains under heavy CPU/GPU use.
Display Configurations
TB4 Windows laptops: single 8K@60Hz, dual 4K@60Hz, single 4K@120Hz, or dual 1080p@120Hz. The variety of display modes covers productivity (dual 4K) and high-refresh-rate gaming or design work (4K@120Hz).
MacBooks with M1/M2/M3/M4 Pro, M1/M2/M3/M4 Max, and M4 base: dual displays.
MacBooks with M1/M2/M3 base: single display only. Apple’s chipset limitation, not Kensington’s. The dock does not use DisplayLink to work around this restriction.
Display cables (USB-C to HDMI or USB-C to DisplayPort) are not included. The dock outputs video through its Thunderbolt 4 downstream ports. You supply the adapter or cable for your monitor’s input type.
Three USB-A at 10 Gbps + UHS-II Card Reader
Three USB-A 3.2 Gen 2 ports at 10 Gbps. The fourth USB-A port is a dedicated 5V/1.5A charging port for phones and small devices. The UHS-II SD 4.0 card reader reads cards at up to 312 MB/s. For photographers using UHS-II cards from professional cameras, the Kensington reads them at full speed. The CalDigit TS4 and Kensington SD5000T5 also have UHS-II readers. Most other docks on this site have UHS-I or do not specify.
Thunderbolt 3 Windows: Not Compatible
Kensington is unusually direct about this: “if you have a Thunderbolt 3 Windows laptop, this is not the dock for you.” They point to their K34009US model instead. TB3 MacBooks (macOS 11+) work. TB4 Windows works. TB3 Windows does not. Before purchasing, verify your Windows laptop has Thunderbolt 4, not Thunderbolt 3. The distinction matters.
DockWorks and Enterprise Security
DockWorks software provides WiFi Auto-Switch (switches to Ethernet when wired, back to WiFi when undocked), MAC Address ID Pass-Through for network authentication, and Device Connection Monitoring for IT visibility. Intel VT-d DMA protection prevents peripheral devices from accessing system memory. These features serve IT departments managing docked fleets. Individual users benefit from WiFi Auto-Switch. The security and monitoring features are invisible during normal use but critical in enterprise deployments.
Drawbacks
| Consideration | Detail |
|---|---|
| TB3 Windows Excluded | Not compatible. Kensington directs to K34009US. |
| M1/M2/M3 Base Mac: Single Display | Apple limitation. No DisplayLink workaround. |
| Display Cables Not Included | USB-C to HDMI or DP adapter required for monitors. |
| Gigabit Ethernet, Not 2.5 Gbps | Kensington SD5000T5 and CalDigit TS4 have 2.5 GbE. |
| VESA Bracket Sold Separately | K34050WW not included. |
| Lock Sold Separately | K65035AM or K60600WW not included. |
How It Compares to the Kensington SD5000T5
The SD5700T is Kensington’s Thunderbolt 4 dock. The SD5000T5 is their Thunderbolt 5 dock. The SD5000T5 provides 140W PD (vs 90W), 80-120 Gbps bandwidth (vs 40 Gbps), triple 4K@144Hz on Windows (vs dual 4K@60Hz), 2.5 GbE (vs 1 GbE), and UHS-II card readers (both have these). The SD5700T costs less and serves TB4 laptops. The SD5000T5 serves TB5 laptops at the ceiling of current docking capability. For the SD5000T5 review, see the Kensington SD5000T5 Thunderbolt 5 review.
Who This Dock Is For
TB4 Windows and TB3/TB4 MacBook owners who need static 90W charging, three TB4 downstream ports, UHS-II card reading, and enterprise security from Kensington: The static charging ensures 90W to the laptop regardless of peripheral load. Three TB4 downstream ports at 40 Gbps each with daisy chaining. UHS-II SD 4.0. 10 Gbps USB-A. DockWorks for IT management. 3-year warranty with lifetime support. VESA mounting. On/off switch. 1 lb. If your TB4 Windows laptop or MacBook needs a dock where charging never drops, the SD5700T delivers that. For a lower-tier Kensington dock or the TB5 upgrade, see our docking stations hub page.
TB3 Windows users or base M1/M2/M3 Mac owners who need dual monitors: TB3 Windows is excluded. Base M-series Macs get single display. For TB3 Windows, Kensington offers K34009US. For base M-series dual displays, DisplayLink docks serve that need.
Final Verdict
The Kensington SD5700T provides static 90W charging that does not drop under peripheral load, three TB4 downstream ports with daisy chaining, UHS-II card reading, 10 Gbps USB-A, Gigabit Ethernet, VESA mounting, and enterprise security features at 1 lb. The 3-year warranty with lifetime technical support from Kensington backs the hardware. The static charging is the feature that differentiates it from other TB4 docks in the same category. Where other docks reduce laptop power when peripherals draw current, the SD5700T maintains full 90W delivery at all times.
The TB3 Windows exclusion, base M-series single-display limitation, Gigabit (not 2.5 Gbps) Ethernet, and the need to supply your own display cables are the practical caveats. For TB4 users who want consistent power delivery and Kensington’s security and support ecosystem, the SD5700T provides both.
Frequently Asked Questions
Does this work with my Thunderbolt 3 Windows laptop?
No. Kensington explicitly excludes TB3 Windows laptops. For TB3 Windows, they recommend the K34009US model.
What is static charging?
The dock provides 15W to each downstream TB4 port from a dedicated power pool, independent of the 90W going to the laptop. Other TB4 docks share a single power budget between the laptop and peripherals. Static charging means the laptop always receives 90W regardless of peripheral load.
Will my MacBook Air M2 get dual monitors?
No. Base M1/M2/M3 Macs are limited to single display. Dual displays require M1/M2/M3/M4 Pro, Max, or M4 base chipset. Apple’s limitation, not Kensington’s.
How does this compare to the CalDigit TS4?
Kensington SD5700T: 11 ports, 90W static charging, 3 TB4 downstream, UHS-II SD, 1 GbE, DockWorks, Intel VT-d, 3-year warranty + lifetime support. CalDigit TS4: 18 ports, 98W charging (not static), 3 TB4 downstream, UHS-II SD, 2.5 GbE, no enterprise management software. Kensington has static charging and enterprise features. CalDigit has more ports and faster Ethernet.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.

I evaluate docking stations the way they actually get used — against real bandwidth budgets, power-delivery ceilings, and the OS handshakes that quietly cap what a port can do — not spec-sheet promises. Every constraint that can break a multi-display setup is disclosed before any affiliate link.
Docking Station Intelligence
The standards are confusing by design. These three panels decode what manufacturers won’t explain clearly. Applicable to every docking station.
The USB-C Confusion Matrix
The USB-C connector is the single greatest source of buyer confusion in docking stations. The physical plug looks identical whether it carries USB 2.0 at 480 Mbps or Thunderbolt 5 at 120 Gbps — a 250x difference in capability hidden behind the same shape. Manufacturers exploit this by labeling everything "USB-C compatible" without specifying which protocol runs through it. Two docks can look identical on the outside and behave completely differently once you plug them in.
The hierarchy matters because it determines everything: how many monitors your dock can drive, how fast files transfer, whether your laptop charges while docked, and whether you need third-party drivers. Here is the real capability ladder, from slowest to fastest:
The practical takeaway: if your laptop has Thunderbolt 4, buy a Thunderbolt dock. If it only has generic USB-C, verify whether it supports DisplayPort Alt Mode before buying anything with multi-monitor claims. Our buying guide walks through verification steps for every major laptop brand.
Power Delivery: What the Watts Mean
Power Delivery (PD) determines whether your docking station can charge your laptop while you work, or whether you need a separate charger cluttering your desk. The math is simple but rarely explained: your laptop draws a specific wattage under load, and the dock must match or exceed it. If the dock delivers less than your laptop needs, the battery slowly drains even while plugged in — defeating the purpose of a docking station entirely.
Check the laptop manufacturer’s recommended power supply and the dock’s rated host power. Shared charging budgets vary by dock: powering peripherals does not reduce host charging on every model. USB-C charging also depends on the laptop, cable and negotiated power profile. A lower-power supply may charge slowly or allow battery drain under load; a fixed 15–20W margin is not a universal requirement.
Check your laptop’s original charger wattage — that’s your baseline. Our FAQ covers how to find this for every major brand.
Native Display vs DisplayLink: The Hidden Factor
This is the decision most buyers don’t know they’re making. When a docking station outputs video to your monitors, it uses one of two fundamentally different methods: native (the dock passes your laptop’s GPU signal directly to the monitor) or DisplayLink (the dock compresses video over USB and a software driver renders it). The difference is invisible in marketing materials but profoundly affects your daily experience.
Native output through DisplayPort Alt Mode or Thunderbolt uses the host graphics system. DisplayLink transports encoded display data over USB using compatible software. Its responsiveness and CPU/GPU load vary with the computer, software, resolution and workload; fixed latency, CPU and battery percentages are not universal specifications. Protected-video playback also depends on the display path, operating system and service. Check DisplayLink system requirements for your configuration.
DisplayLink can add displays through compatible USB connections, including USB-A, and can serve systems with limited native display outputs. Native limits depend on the exact computer and operating mode. For example, M3 MacBook Air and MacBook Pro support two external displays with the lid closed under Apple’s stated conditions. Choose the display method against your computer, software permissions and workload.
Native (Alt Mode / Thunderbolt)
DisplayLink (USB compression)
Choose a native or DisplayLink dock by checking the exact host, dock, operating system and monitor combination. Native output is often preferable for latency-sensitive workloads; DisplayLink can be useful for additional productivity displays and compatible USB-A hosts. Neither connector shape nor a generic bandwidth number proves compatibility.
