LIONWEI Laptop Docking Station Review
Declutter your desk with the LIONWEI Laptop Docking Station. A 13-in-1 tech hero that simplifies connectivity, turns chaos into order, and keeps you productive.

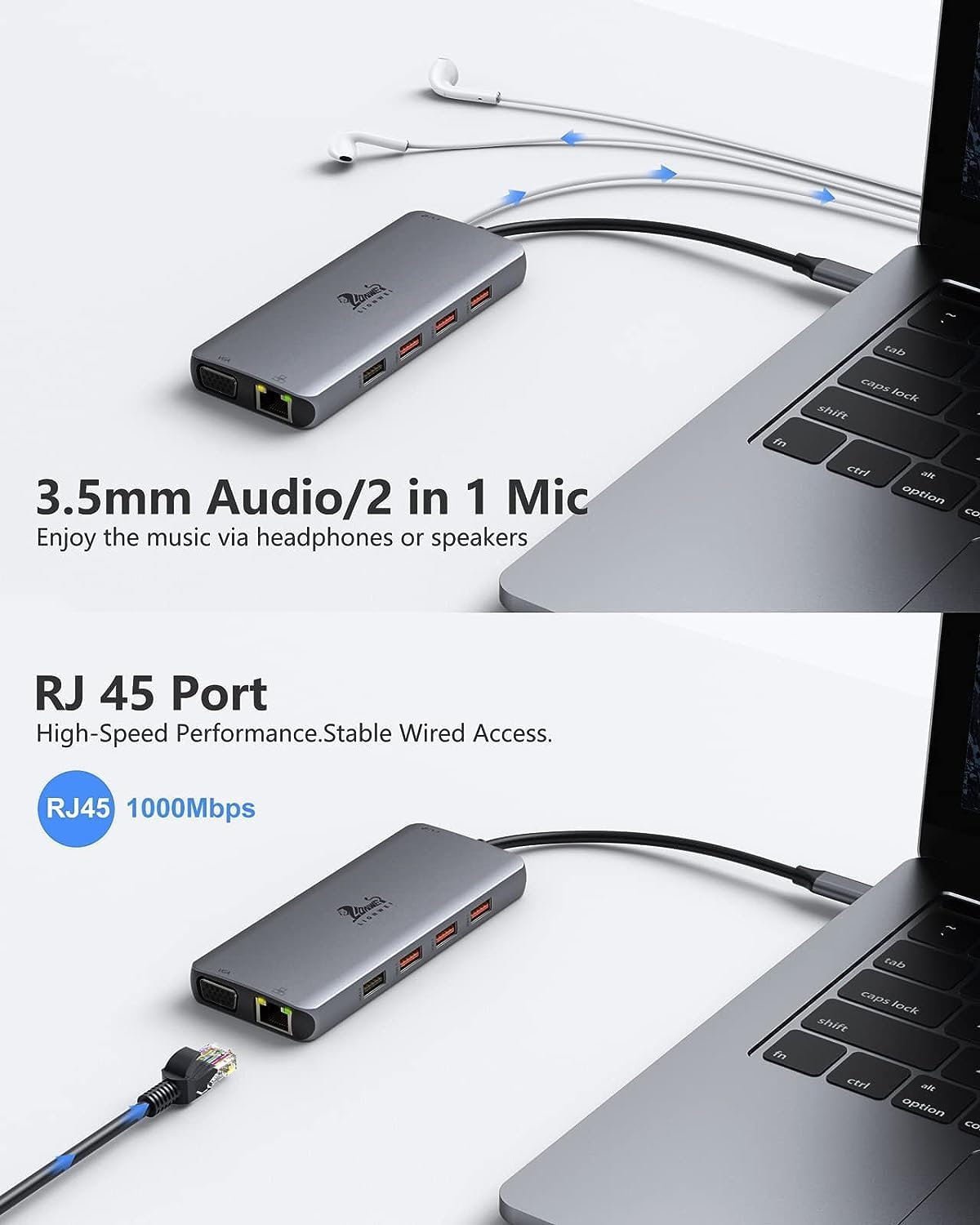

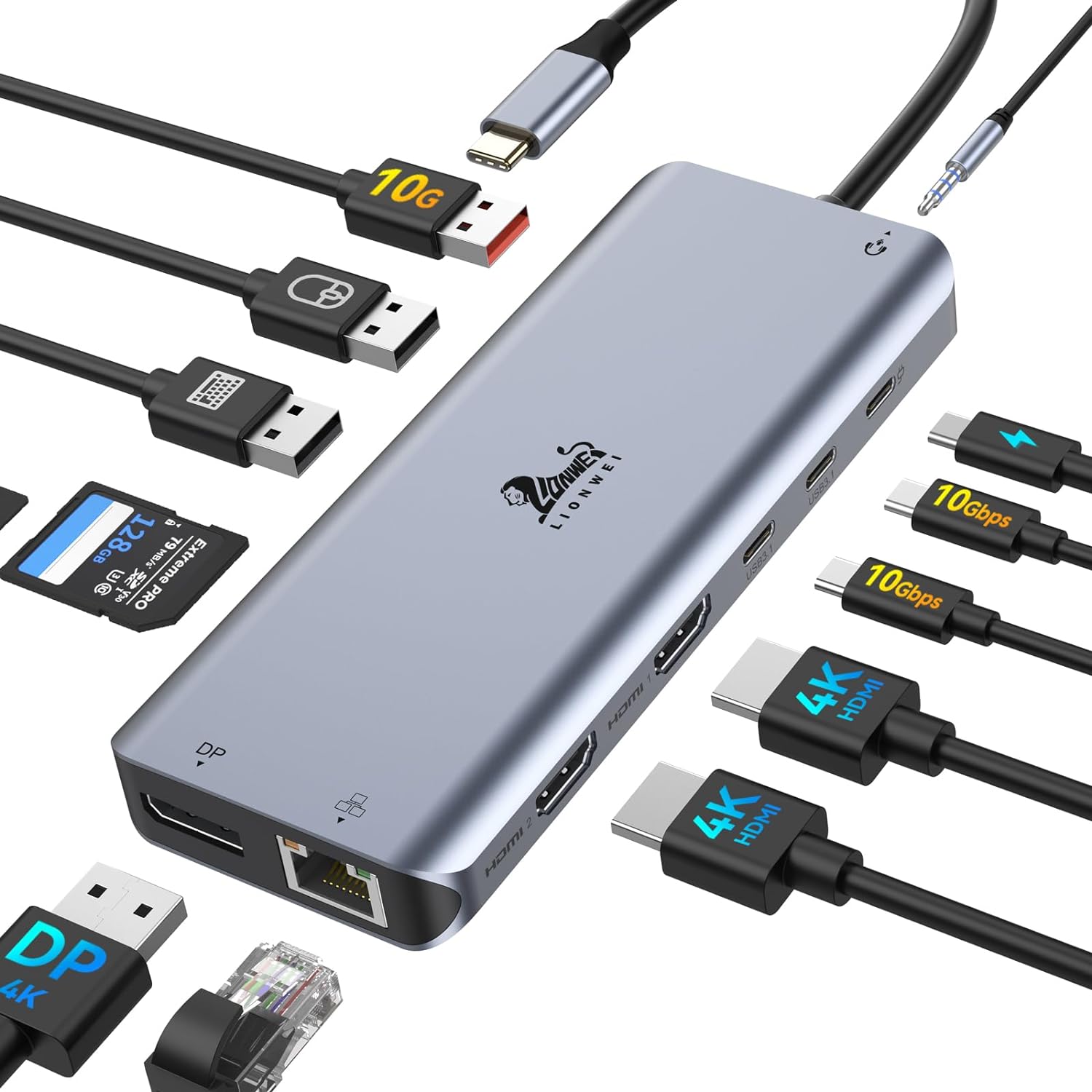

The LIONWEI 13-in-1 dock features dual HDMI ports, a DisplayPort for triple display through MST on Windows, three 10 Gbps USB ports, 100W Power Delivery (PD), Gigabit Ethernet, audio, and dedicated SD and TF card readers running at 200 Mbps. It is specifically designed for users who frequently need to transfer files off SD and TF cards.
Thirteen ports. Dual HDMI at 4K@60Hz (DP 1.4 source). DisplayPort at 4K@60Hz. Three USB 3.1 at 10 Gbps. Two USB 2.0. 100W PD (82W to laptop, 18W consumed by dock). Gigabit Ethernet. SD/TF at 200 Mbps. 3.5mm audio. 3.9 oz. 7″ x 2.3″ x 0.75″. Mac extends one monitor at 4K@30Hz. 2-year warranty.

LIONWEI Docking Station Dual Monitor 4K, 13-in-1 USB C Dock for Laptop Mac | Dual HDMI+DP, 4K, 10Gbps, 100W PD, Ethernet, Audio, SD/TF, 6 USB C/A Ports, USB C Hub for MacBook/Dell/HP/Lenovo

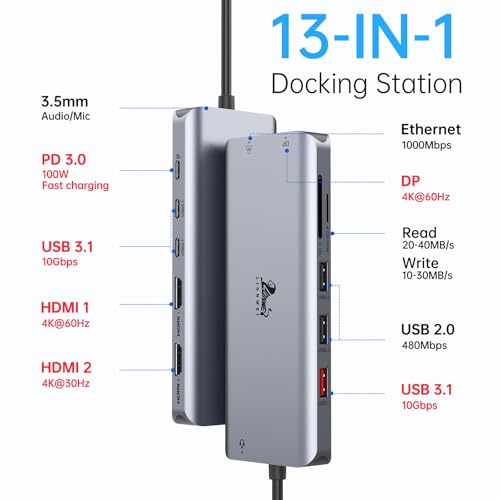

Key Specifications
| Specification | Detail |
|---|---|
| Total Ports | 13 |
| HDMI | 2 (4K@60Hz with DP 1.4 source) |
| DisplayPort | 1 (4K@60Hz) |
| USB 3.1 (10 Gbps) | 3 (USB-C and USB-A mix) |
| USB 2.0 | 2 (480 Mbps) |
| USB-C PD | 100W (82W to laptop, 18W dock overhead) |
| Gigabit Ethernet | 1 (1000 Mbps) |
| SD Card Reader | 1 (200 Mbps) |
| TF/MicroSD Reader | 1 (200 Mbps) |
| 3.5mm Audio/Mic | 1 (combo jack) |
| Triple Display | Windows MST only. Mac extends one monitor at 4K@30Hz. |
| Weight | 0.11 kg / 3.9 oz |
| Dimensions | 7″ L x 2.3″ W x 0.75″ H |
| Manufacturer | LIONWEI |
| Warranty | 2 years |
Triple Display on Windows via MST
Two HDMI and one DisplayPort, each rated up to 4K@60Hz with a DP 1.4 source laptop. MST splits the video signal from the laptop’s single USB-C output into three independent display streams. Each monitor gets its own desktop. Email on one, main project on another, reference or messaging on the third. MST is a Windows feature — macOS does not support it through this dock. Mac users get the laptop screen plus one extended external at 4K@30Hz.

LIONWEI rates each port on its own and gives no figure for two or three screens at the same time. All three share one USB-C link from the laptop, so do not expect three 4K@60Hz screens at once. With a DP 1.2 source, resolution and refresh rate will be lower. The laptop determines the input bandwidth.
82W to the Laptop: The Math on 100W PD
LIONWEI states clearly: the dock consumes 18W for its own operations. A 100W charger through the PD port delivers 82W to the laptop. MacBook Air (30-45W) charges at full speed with significant headroom. MacBook Pro 13″ (61W) charges at full speed. MacBook Pro 14″ (70-96W) charges at near full speed. Windows ultrabooks at 45-65W charge at full speed. Laptops drawing exactly 90-100W receive less than their maximum rate.
200 Mbps Card Readers
SD and TF readers, which LIONWEI rates at up to 200 Mbps. LIONWEI does not say which card standard they support, so do not expect full UHS-II speed. For photographers pulling files off a camera card, the readers mean one less adapter to carry. The other LIONWEI 13-in-1 has no card readers.
Three 10 Gbps USB Ports
Three USB 3.1 ports (USB-C and USB-A mix) at 10 Gbps. Two USB 2.0 ports at 480 Mbps for keyboard and mouse. The 10 Gbps ports handle external SSDs, fast peripherals, and USB-C accessories at Gen 2 speed. Each port is rated at 10 Gbps, but all three share one USB-C link to the laptop, so two fast drives running at once will split that bandwidth.
3.9 Ounces: Hub Weight, Dock Port Count
At 3.9 oz, the LIONWEI 13-in-1 weighs about the same as a deck of cards but provides thirteen ports including triple display, Ethernet, card readers, and audio. The 7″ x 2.3″ footprint is slim enough for a laptop bag pocket. For a hub that provides desk-dock functionality at travel-hub weight, the 13-in-1 sits in a category where most competitors are either lighter with fewer ports or heavier with the same count.
Drawbacks
| Consideration | Detail |
|---|---|
| Mac: One Monitor Only | macOS extends to one external at 4K@30Hz. No triple display on Mac. |
| 82W, Not 100W to Laptop | Dock consumes 18W. High-power laptops charge below full speed. |
| MST Required for Triple | DP 1.4 with MST needed. Not all laptops support it. |
| Plug and Play Only | No driver option for Mac multi-display workaround. |
The Two LIONWEI 13-in-1 Docks Compared
| Feature | This Dock | Other LIONWEI 13-in-1 |
|---|---|---|
| DisplayPort | Yes (4K@60Hz) | Yes (4K@60Hz) |
| HDMI | 2 | 2 |
| Triple Display (MST) | Yes, Windows only | Yes, Windows only |
| SD/TF Readers | Yes (200 Mbps) | No |
| USB 10 Gbps | 3 | 3 |
| USB 5 Gbps | No | 3 |
| USB 2.0 | 2 | 2 |
| PD | 100W (82W usable) | 100W (87W usable) |
| Mac Extended Monitor | One at 4K@30Hz | One at 4K@60Hz |
| Audio | Yes | Yes |
| Ethernet | Yes | Yes |
| Weight | 3.9 oz | 4.9 oz |
For the other dock, see the LIONWEI 13-in-1 USB-C Docking Station Review.
Who This Dock Is For
Windows users who need triple display with 10 Gbps USB, 200 Mbps card readers, Ethernet, audio, and 82W charging at under 4 ounces: The LIONWEI 13-in-1 provides thirteen ports with three video outputs, three fast USB, card readers, and full connectivity at a weight that disappears in the bag. MST for triple display on Windows. 2-year warranty. For more USB ports and no card readers, the LIONWEI 13-in-1 USB-C Dock covers that and passes 87W to the laptop.
Mac users who need triple display or buyers who need more than 82W charging: Mac extends one monitor only. 82W to the laptop after dock overhead. For Mac triple display, a DisplayLink dock provides that. For higher charging, a dock with its own power adapter provides more wattage. See the docking stations hub page.
Final Verdict
This is the card reader version of LIONWEI’s two 13-in-1 docks. Thirteen ports with three at 10 Gbps, triple display on Windows, Gigabit Ethernet, audio, and 82W charging from a 100W PD pass-through. At 3.9 ounces, it carries like a travel hub but performs like a desk dock. The comparison table above gives the buyer a clear choice: if you need SD and TF readers, pick this one. If you need more USB ports, 87W charging, or 4K@60Hz on a Mac, the other LIONWEI 13-in-1 is the better fit.
Frequently Asked Questions
Can I use triple display on Mac?
No. macOS extends to one external monitor at 4K@30Hz. Triple display through MST is Windows only.
Why does my laptop only get 82W from 100W PD?
The dock consumes 18W for its own operations, so 82W passes through to the laptop from a 100W charger.
What is the difference between this and the other LIONWEI 13-in-1?
This dock has SD and TF readers, which the other one lacks. The other dock has three more USB ports at 5 Gbps, passes 87W to the laptop instead of 82W, and runs a Mac’s external monitor at 4K@60Hz instead of 4K@30Hz. HDMI, DisplayPort, the three 10 Gbps USB ports, Ethernet, and audio are the same.
Are the card readers fast enough for UHS-II cards?
LIONWEI rates the readers at up to 200 Mbps, below the 312 MB/s maximum of UHS-II. A UHS-II card should still work, but it will not run at full speed.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.

I evaluate docking stations the way they actually get used — against real bandwidth budgets, power-delivery ceilings, and the OS handshakes that quietly cap what a port can do — not spec-sheet promises. Every constraint that can break a multi-display setup is disclosed before any affiliate link.
Docking Station Intelligence
The standards are confusing by design. These three panels decode what manufacturers won’t explain clearly. Applicable to every docking station.
The USB-C Confusion Matrix
The USB-C connector is the single greatest source of buyer confusion in docking stations. The physical plug looks identical whether it carries USB 2.0 at 480 Mbps or Thunderbolt 5 at 120 Gbps — a 250x difference in capability hidden behind the same shape. Manufacturers exploit this by labeling everything "USB-C compatible" without specifying which protocol runs through it. Two docks can look identical on the outside and behave completely differently once you plug them in.
The hierarchy matters because it determines everything: how many monitors your dock can drive, how fast files transfer, whether your laptop charges while docked, and whether you need third-party drivers. Here is the real capability ladder, from slowest to fastest:
The practical takeaway: if your laptop has Thunderbolt 4, buy a Thunderbolt dock. If it only has generic USB-C, verify whether it supports DisplayPort Alt Mode before buying anything with multi-monitor claims. Our buying guide walks through verification steps for every major laptop brand.
Power Delivery: What the Watts Mean
Power Delivery (PD) determines whether your docking station can charge your laptop while you work, or whether you need a separate charger cluttering your desk. The math is simple but rarely explained: your laptop draws a specific wattage under load, and the dock must match or exceed it. If the dock delivers less than your laptop needs, the battery slowly drains even while plugged in — defeating the purpose of a docking station entirely.
Check the laptop manufacturer’s recommended power supply and the dock’s rated host power. Shared charging budgets vary by dock: powering peripherals does not reduce host charging on every model. USB-C charging also depends on the laptop, cable and negotiated power profile. A lower-power supply may charge slowly or allow battery drain under load; a fixed 15–20W margin is not a universal requirement.
Check your laptop’s original charger wattage — that’s your baseline. Our FAQ covers how to find this for every major brand.
Native Display vs DisplayLink: The Hidden Factor
This is the decision most buyers don’t know they’re making. When a docking station outputs video to your monitors, it uses one of two fundamentally different methods: native (the dock passes your laptop’s GPU signal directly to the monitor) or DisplayLink (the dock compresses video over USB and a software driver renders it). The difference is invisible in marketing materials but profoundly affects your daily experience.
Native output through DisplayPort Alt Mode or Thunderbolt uses the host graphics system. DisplayLink transports encoded display data over USB using compatible software. Its responsiveness and CPU/GPU load vary with the computer, software, resolution and workload; fixed latency, CPU and battery percentages are not universal specifications. Protected-video playback also depends on the display path, operating system and service. Check DisplayLink system requirements for your configuration.
DisplayLink can add displays through compatible USB connections, including USB-A, and can serve systems with limited native display outputs. Native limits depend on the exact computer and operating mode. For example, M3 MacBook Air and MacBook Pro support two external displays with the lid closed under Apple’s stated conditions. Choose the display method against your computer, software permissions and workload.
Native (Alt Mode / Thunderbolt)
DisplayLink (USB compression)
Choose a native or DisplayLink dock by checking the exact host, dock, operating system and monitor combination. Native output is often preferable for latency-sensitive workloads; DisplayLink can be useful for additional productivity displays and compatible USB-A hosts. Neither connector shape nor a generic bandwidth number proves compatibility.
