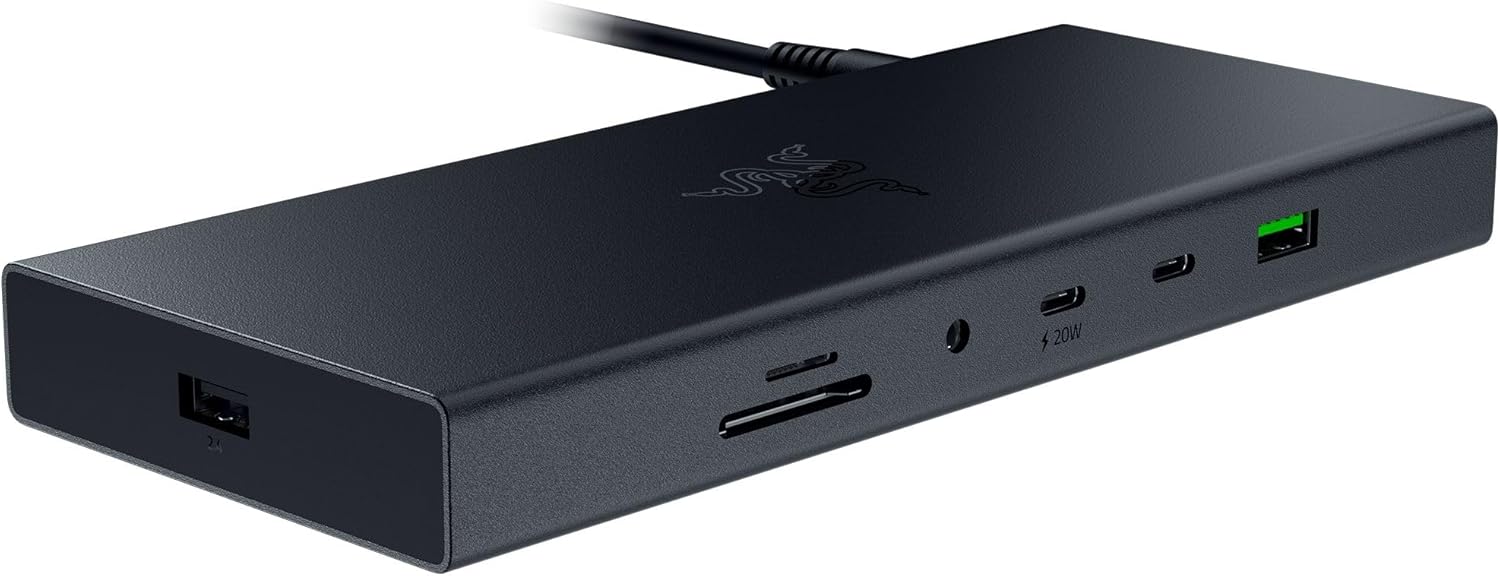

Razer USB 4 Dock Review
Unravel your cords and your woes with the Razer USB 4 Dock. Boasting 14 ports, it’s a tech savior in black, blending chaos with calm.
Fourteen ports including a detail that catches your eye if you use wireless gaming peripherals: a dedicated USB-A port on its own edge of the dock, isolated from the other USB ports, built specifically for 2.4 GHz wireless dongles. USB 3.0 signals create electromagnetic interference in the 2.4 GHz band, which causes polling rate drops and cursor stuttering when a dongle sits next to an active USB 3.0 port. Razer separated that port physically. It is a small thing on the spec sheet but a real-world problem solver on the desk.
Beyond that, the port layout covers serious ground: HDMI 2.1, DisplayPort 1.4, dual 4K@60Hz or single 4K@120Hz, USB 4 at 40 Gbps, 100W laptop charging from a 180W adapter with a dedicated power button, UHS-II card readers, Gigabit Ethernet, and a 3.5mm combo jack that supports 7.1 surround. All-metal casing. 1.1 kg. USB 4 instead of Thunderbolt, which keeps the price lower than Thunderbolt docks with similar port counts. Windows and macOS compatible. Razer warranty through RazerStore.
Key Specifications
| Specification | Detail |
|---|---|
| Total Ports | 14 (including upstream USB 4) |
| USB 4 Type-C (upstream) | 1 (connects to laptop, 100W PD 3.0) |
| HDMI 2.1 | 1 |
| DisplayPort 1.4 | 1 |
| USB-A 3.2 Gen 2 (10 Gbps) | 2 |
| USB-A 3.2 Gen 1 (5 Gbps) | 2 |
| USB-A 2.0 (dedicated 2.4 GHz dongle) | 1 (isolated, separate edge of dock) |
| USB-C 3.2 Gen 2 (downstream) | 1 |
| USB-C PD 20W (downstream) | 1 (phone/tablet charging) |
| Gigabit Ethernet RJ-45 | 1 |
| UHS-II SD Card Reader | 1 |
| UHS-II MicroSD Card Reader | 1 |
| 3.5mm Audio Combo Jack | 1 (supports 7.1 surround) |
| Display: Single | 4K@120Hz (HDMI 2.1 or DP 1.4) |
| Display: Dual | 4K@60Hz each (HDMI + DP) |
| Data Transfer | 40 Gbps (USB 4) |
| Power Adapter | 180W included |
| Power to Laptop | 100W peak / 96W sustained |
| Power Button | Yes (charges devices even when laptop disconnected) |
| USB-C Video Output | Not supported (HDMI and DP only) |
| Enclosure | Anodized aluminum, all-metal |
| Weight | 1.1 kg / 2.4 lbs |
| Dimensions | 190mm W x 80mm D x 22mm H (7.5″ x 3.1″ x 0.85″) |
| Compatible Systems | USB 4 Type-C, 11th Gen Intel Tiger Lake or newer, M1+ Macs (macOS 11+) |
| Manufacturer | Razer Inc. |
| Warranty | Up to 2 years (1 year standard, extendable via RazerStore) |
The Dedicated 2.4 GHz Dongle Port
This is the port that makes the Razer different from every other dock on this site. Wireless gaming mice with 2.4 GHz receivers — Razer’s own DeathAdder, Viper, and Basilisk lines, plus Logitech G Pro, SteelSeries Aerox, and others — are susceptible to interference from USB 3.0 signals. The electrical noise from 3.0 ports operating at 5 Gbps overlaps with the 2.4 GHz frequency band. Plugging a dongle next to a USB 3.0 external drive can cause polling rate drops, erratic cursor movement, and input lag.
Razer placed a USB 2.0 port on its own edge of the dock, physically distant from the Gen 1 and Gen 2 ports. The dongle sits alone, away from interference sources. For competitive gamers who use 8K polling rate mice and notice every millisecond of input delay, this isolation matters. For casual users, it means the wireless mouse just works without wondering why the cursor stuttered when you plugged in an external drive.
Single 4K@120Hz or Dual 4K@60Hz
HDMI 2.1 and DisplayPort 1.4 provide the two video outputs. Single monitor: 4K@120Hz on either port. That refresh rate is unusual for a dock — most docks cap at 4K@60Hz. Gamers who run a high-refresh 4K display get the full 120Hz from the dock without compromise. Dual monitors: both run at 4K@60Hz. The dock does not support a 120Hz primary and a 60Hz secondary simultaneously — it is one or the other configuration.
The USB-C downstream ports do not output video. Only HDMI and DisplayPort carry display signals. If you have a USB-C monitor, you need a USB-C to HDMI or USB-C to DisplayPort cable, or connect through the dock’s HDMI/DP ports with the appropriate cable for your monitor. For USB-C display requirements, see our USB-C portable monitor guide.
100W Peak, 96W Sustained
The 180W adapter powers the dock and delivers 100W peak (96W sustained) to the laptop through the upstream USB 4 port. That distinction matters for laptops that charge at exactly 100W: under sustained load, they receive 96W, which may result in very slow battery drain during intensive work. For laptops that charge at 65-90W, the sustained 96W provides full-speed charging at all times. The dedicated power button lets the dock remain powered and charging devices even when the laptop is disconnected — useful for overnight phone and tablet charging through the 20W USB-C PD port.
USB 4 Instead of Thunderbolt: What It Means
USB 4 and Thunderbolt 4 both operate at 40 Gbps. The practical difference: Thunderbolt 4 is Intel-certified with guaranteed minimum specs. USB 4 is a broader standard with more variability. For this dock, the USB 4 choice means it works with a wider range of laptops (not just Intel Thunderbolt-certified ones) and costs less than Thunderbolt docks with similar port counts. The Razer at $230 undercuts the CalDigit TS4 and Kensington SD5700T while providing comparable connectivity. The trade-off: no Thunderbolt daisy-chaining and no Intel certification guarantee. For most desk setups with displays, USB peripherals, and Ethernet, this distinction does not affect daily use.
Mac Compatibility Note
Compatible with M1 and newer Macs running macOS 11 Big Sur or later. On Mac, the dock supports one additional monitor in duplicate mode only per Razer’s support page. Mac users who need dual independent extended displays should verify behavior with their specific Mac model. Base M1/M2/M3 Macs are limited to single external display by Apple’s chipset regardless of dock. M-series Pro/Max chips support dual displays natively.
Drawbacks
| Consideration | Detail |
|---|---|
| No USB-C Video Output | Only HDMI and DP carry display signals. USB-C monitors need an adapter. |
| 96W Sustained, Not 100W | Laptops charging at exactly 100W may drain slowly under peak load. |
| Mac Dual Display Unclear | Razer support says duplicate mode only for additional Mac monitor. |
| No Thunderbolt Daisy-Chain | USB 4 does not support Thunderbolt daisy-chaining. |
| 1.1 kg + 180W Adapter | Portable for a desk dock, but the adapter adds bulk for travel. |
| Port Labels Hard to Read | Reviewers note labels are small and difficult to see on the dark casing. |
Who This Dock Is For
Gamers and professionals who need 4K@120Hz, a dedicated 2.4 GHz dongle port, 14 ports, and 100W charging from a USB 4 dock at a lower price than Thunderbolt alternatives: The Razer USB 4 Dock provides the isolated dongle port, HDMI 2.1, DP 1.4, UHS-II card readers, Gigabit Ethernet, 7.1 surround audio, and a power button in an all-metal chassis. The USB 4 connection works with USB 4, Thunderbolt 3/4, and compatible USB-C laptops from 11th Gen Intel onward and M1+ Macs. For a Thunderbolt 4 dock from Razer with RGB lighting, Razer also makes the Thunderbolt 4 Dock Chroma at a higher price. For the CalDigit TS4 comparison, see the CalDigit TS4 Thunderbolt 4 Dock review.
Mac users who need dual independent extended displays or Thunderbolt daisy-chaining: Mac display behavior through this dock may be limited. Thunderbolt docks provide daisy-chaining. For those needs, see the Kensington SD5700T review or our docking stations hub page.
Final Verdict
The Razer USB 4 Dock brings a gaming hardware company’s attention to detail into the docking station category. The dedicated 2.4 GHz dongle port solves a real interference problem that other dock manufacturers ignore. HDMI 2.1 with 4K@120Hz serves high-refresh gaming monitors. USB 4 at 40 Gbps provides Thunderbolt-class bandwidth without Thunderbolt pricing. The 180W adapter with a physical power button and 100W/96W sustained charging keeps the laptop and peripherals running independently. UHS-II card readers, Gigabit Ethernet, and 7.1 surround audio round out a dock that covers both gaming and productivity without compromise on either.
The Mac dual display limitation, missing USB-C video output, and hard-to-read port labels are the practical caveats. For Windows gamers and professionals who want a single dock that handles a high-refresh monitor, wireless gaming peripherals, and a full desk setup at $230, the Razer delivers fourteen ports with one port that no other dock thought to include.
Frequently Asked Questions
Why does this dock have a separate port for my wireless mouse dongle?
USB 3.0 signals at 5 Gbps create electromagnetic interference in the 2.4 GHz frequency band. Wireless mouse dongles operating at 2.4 GHz can experience polling rate drops and cursor stuttering when placed next to active USB 3.0 ports. Razer isolated a USB 2.0 port on a separate edge of the dock to prevent this interference.
Can I run one 4K@120Hz monitor and one 4K@60Hz monitor at the same time?
No. The dock supports either single 4K@120Hz or dual 4K@60Hz. You cannot mix refresh rates across the two display outputs simultaneously.
How does this compare to the CalDigit TS4?
Razer: 14 ports, USB 4, HDMI 2.1, DP 1.4, 4K@120Hz single, dedicated 2.4 GHz port, 100W PD, $230. CalDigit: 18 ports, Thunderbolt 4, DP 1.4 only, no HDMI, 4K@60Hz max, no dedicated dongle port, 98W PD, higher price. Razer has HDMI 2.1, 4K@120Hz, and the dongle port. CalDigit has more ports, 2.5 GbE, and Thunderbolt daisy-chaining.
Does this work with my MacBook Air M2?
Yes for basic connectivity (USB, Ethernet, charging, card readers). For display output, base M1/M2/M3 Macs are limited to single external display by Apple. Razer’s support page says the dock supports one additional Mac monitor in duplicate mode only. Verify extended display behavior with your specific Mac model.
